AES256XTSSTGIP Reference Design

1       Introduction. 1

2       Hardware Overview. 1

2.1      AES256XTSSTGIP. 2

2.2      Avl2Reg. 2

2.3      AsyncAvlReg. 3

2.4      UserReg. 3

2.4.1      Encryption key setting. 7

2.4.2      Tweakable key setting. 8

2.4.3      parameter setting. 9

2.4.4      Encryption. 11

2.4.5      Decryption. 12

3       CPU Firmware. 13

3.1      Set encryption key. 13

3.2      Set tweakable key. 14

3.3      Set encryption/decryption IV. 14

3.4      Show Data Memory. 15

3.5      Fill Plain Data Memory. 16

3.6      Encrypt 17

3.7      Fill Cipher Data Memory. 18

3.8      Decrypt 18

4       Revision History. 19





1       Introduction

This document describes the details of AES256XTSSTGIP, AES256XTSSTG2XIP and AES256XTSSTG4XIP reference design. This document will focus on AES256XTSSTGIP, which can serve as a reference for the other modules in the series. The only difference is the width of the data. In this reference design, AES256XTSSTGIP are used to encrypt and decrypt data between two memories in FPGA. User can fill memory with plain or cipher data patterns, set encryption key, tweakable key, Initialization Vector (IV) and control test operation via serial console on test PC. More details of the hardware design and CPU firmware are described as follows.



2       Hardware Overview

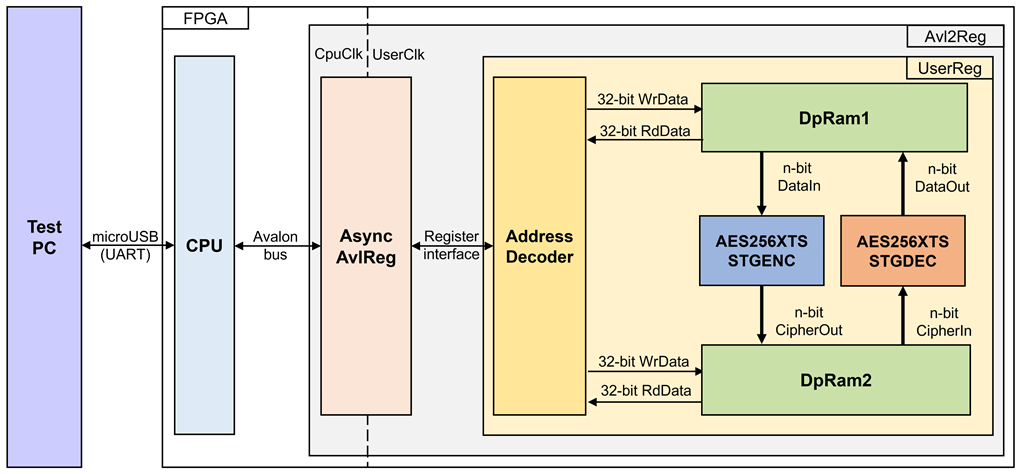

Figure 2‑1 AES256XTSSTGIP reference design block diagram



In this test environment, two AES256XTSSTGIP, called AES256XTSSTGENC and AES256XTSSTGDEC, interface with two dual-port RAMs with asymmetric ports, which are DpRam1 and DpRam2, as shown in Figure 2‑1. AES256XTSSTGIP and two RAMs are sub-modules in UserReg module within Avl2Reg. CPU system is designed to interface with FPGA logic through Avalon-MM bus and interface with user through serial console in test PC.

For user control interface, there are registers in UserReg to store parameters from user such as encryption key, tweakable key, Initialization Vector (IV), number of data to encrypt or decrypt. Input parameters are received from user via serial console.

For user data interface, UserReg is designed to be able to write pattern data or read data in RAMs following user’s command. DpRam1 is used to store the plain data from user which will be input data for AES256XTSSTGENC in encryption mode or the decrypted data which is output data from AES256XTSSTGDEC in decryption mode. DpRam2 is used to store the cipher data from user which will be input data for AES256XTSSTGDEC in decryption mode or encrypted data which is output data from AES256XTSSTGENC in encryption mode. The details of AES256XTSSTGIP are described as follows.



2.1     AES256XTSSTGIP

AES256XTSSTGIP(AES256XTS-StorageIP) Series consists of encryption module and decryption module. Each product in the series has a different data width, the data width is represented by n. The detailed of the products within the series is below.

AES256XTSSTGIP:

·       Support data width 128-bit alignment. (n=128)

·       AES256XTSSTGENC is encrypted module for AES256XTSSTGIP.

·       AES256XTSSTGDEC is decrypted module for AES256XTSSTGIP.

AES256XTSSTG2XIP:

·       Support data width 256-bit alignment. (n=256)

·       AES256XTSSTG2XENC is encrypted module for AES256XTSSTG2XIP.

·       AES256XTSSTG2XDEC is decrypted module for AES256XTSSTG2XIP.

AES256XTSSTG4XIP:

·       Support data width 512-bit alignment. (n=512)

·       AES256XTSSTG4XENC is encrypted module for AES256XTSSTG4XIP.

·       AES256XTSSTG4XDEC is decrypted module for AES256XTSSTG4XIP.

Because CPU system and AES256XTSSTGIP run in different clock domain, AsyncAvlReg module inside Avl2Reg is designed as asynchronous circuit to support clock-crossing operation. Also, AsyncAvlReg converts Avalon-MM bus signal which is standard bus in CPU system to be register interface. The details of Avl2Reg module are described as follows.



2.2     Avl2Reg

Avl2Reg module is connected to CPU through Avalon-MM bus. The hardware registers are mapped to CPU memory address, as shown in Table 2‑1. The control and status registers for CPU access are designed in Avl2Reg.

Avl2Reg consists of AsyncAvlReg and UserReg. AsyncAvlReg is designed to convert the Avalon-MM signals to be the simple register interface which has 32-bit data bus size (similar to Avalon-MM data bus size). Additionally, as shown in Figure 2-1, there are two clock domains applied in this block, i.e., CpuClk which is used to interface with CPU through Avalon-MM bus and UserClk which is user clock domain for AES256XTSSTGENC/AES256XTSSTGDEC. AsyncAvlReg includes asynchronous circuit between CpuClk and UserClk.

UserReg includes the register file of the parameters and the status signals of test logics, including dual-port rams and AES256XTSSTGIP. Both data interface and control interface of AES256XTSSTGIP are connected to UserReg. More details of AsyncAvlReg and UserReg are described as follows.



2.3     AsyncAvlReg

This module is designed to convert the signal interface of Avalon-MM to be register interface. Also, it enables two clock domains, CpuClk and UserClk domain, to communicate.

To write register, RegWrEn is asserted to ‘1’ with the valid signal of RegAddr (Register address in 32-bit unit), RegWrData (write data of the register), and RegWrByteEn (the byte enable of this access: bit[0] is write enable for RegWrData[7:0], bit[1] is used for RegWrData[15:8], …, and bit[3] is used for RegWrData[31:24]).

To read register, AsyncAvlReg asserts RegRdReq=’1’ with the valid value of RegAddr (the register address in 32-bit unit). After that, the module waits until RegRdValid is asserted to ‘1’ to get the read data through RegRdData signal at the same clock.



2.4     UserReg

This module is designed to write/read data in RAMs, control and check status of AES256XTSSTGENC and AES256XTSSTGDEC corresponding with write register access or read register request from AsyncAvlReg module. Memory map inside UserReg module is shown in Table 2‑1. Timing diagram of register interface is shown in Figure 2‑2.



Table 2‑1 Register map Definition







Figure 2‑2 Register interface timing diagram



To read register, the multiplexer is designed to select the read data within each address area. UserRegAddr[12:2] is applied in each register area to select the data. Next, the address decoder uses UserRegAddr[15:13] to select the read data from each area for returning to CPU. As shown in Figure 2‑2, read data is valid in next two clock cycles. When UserRegRdReq is active, rUserRegRdReq is asserted to ‘1’. Then rUserRdValid is active with the valid read value of UserRegAddr.

To write register, UserRegWrEn is asserted to ‘1’ with the valid of UserRegAddr. UserRegAddr[15:13] is used to decode that CPU accesses dual-port ram (DpRam) or internal register area. When CPU accesses DpRam (UserRegAddr[15:13]=“001” or “010”), UserRegAddr[12:2] is set to be the address of DpRam. For example, when UserRegAddr[15:0]=0x2004 and UserRegWrEn=’1’, DpRam1 will be filled with UserRegWrData at Address 0x01. Otherwise, UserRegWrData is loaded to internal register which has matched UserRegAddr[12:2]. For example, rAddrA1 is loaded by UserRegWrData when UserRegAddr=0x0000.

UserRegWrByteEn signal is used when CPU firmware needs to access DpRam by using 32-bit, 16-bit or 8-bit pointer. UserRegWrByteEn[3:0] is mapped to Byte Write Enable port of DpRam.

In this reference design, there are three main operations which are parameter setting, encryption and decryption. Each operation is described as follows.



2.4.1   Encryption key setting

For AES256XTSSTGENC encryption key setting, rEncEKeyIn is set by writing register UserRegAddr=0x0020-0x003F as shown in Table 2‑1. When ENC_EKEYIN_0_REG is written (UserRegAddr=0x0020), rEncEKeyIn[31:0] is set. Then rEncEKeyInValid is asserted to ‘1’ as shown in Figure 2‑3. AES256XTSSTGENC encryption key setting takes 14 clocks cycles to finish.

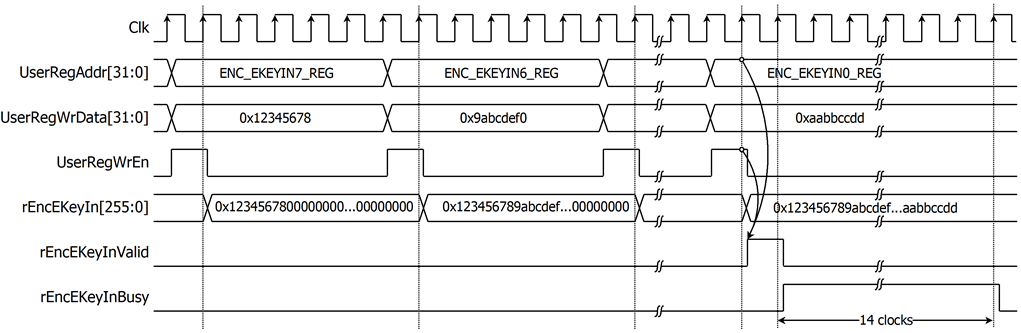

Figure 2‑3 Timing diagram of AES256XTSSTGENC encryption key setting process



For AES256XTSSTGDEC encryption key setting, rDecEKeyIn is set by writing register UserRegAddr=0x0040-0x005F as shown in Table 2‑1. When DEC_EKEYIN_0_REG is written (UserRegAddr=0x0040), rDecEKeyIn[31:0] is set. Then rDecEKeyInValid is asserted to ‘1’ as shown in Figure 2‑4. AES256XTSSTGDEC encryption key setting takes 14 clocks cycles to finish.





Figure 2‑4 Timing diagram of AES256XTSSTGDEC decryption key setting process



2.4.2   Tweakable key setting

For AES256XTSSTGENC tweakable key setting, rEncTKeyIn is set by writing register UserRegAddr=0x0060-0x007F as shown in Table 2‑1. When ENC_TKEYIN_0_REG is written (UserRegAddr=0x0060), rEncTKeyIn[31:0] is set. Then rEncTKeyInValid is asserted to ‘1’ as shown in Figure 2‑3. AES256XTSSTGENC tweakable key setting takes 14 clocks cycles to finish.

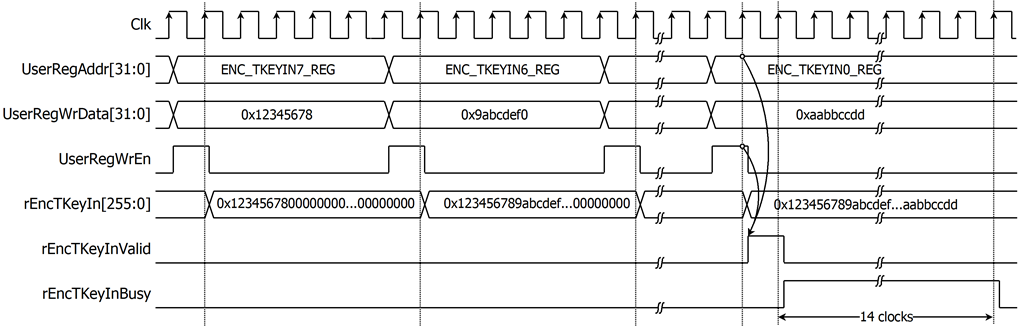

Figure 2‑5 Timing diagram of AES256XTSSTGENC tweakable key setting process



For AES256XTSSTGDEC tweakable key setting, rDecTKeyIn is set by writing register UserRegAddr=0x0080-0x009F as shown in Table 2‑1. When DEC_TKEYIN_0_REG is written (UserRegAddr=0x0080), rDecTKeyIn[31:0] is set. Then rDecTKeyInValid is asserted to ‘1’ as shown in Figure 2‑4. AES256XTSSTGDEC tweakable key setting takes 14 clocks cycles to finish.

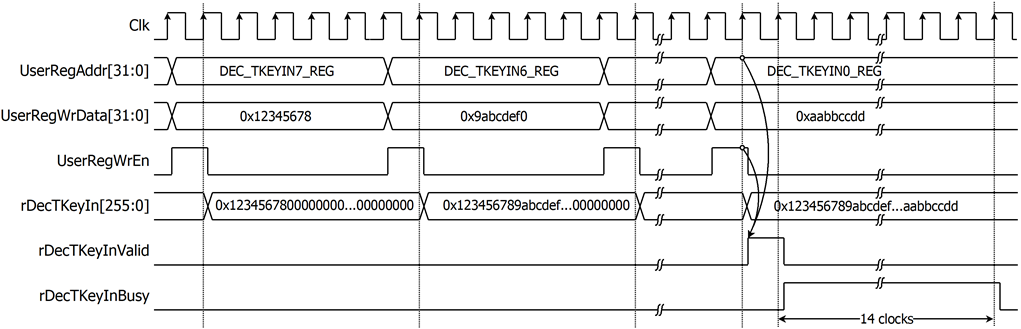

Figure 2‑6 Timing diagram of AES256XTSSTGDEC tweakable key setting process



2.4.3   parameter setting

For encryption process, encryption IV is set by writing ENC_IVIN_0_REG to ENC_IVIN_3_REG. plain data, which will be input data for AES256XTSSTGENC, are stored in DpRam1. Before starting encryption process, address A of DpRam1 (rAddrA1) is set to 0x00 to access the first plain data. Encrypted data from AES256XTSSTGENC is stored in DpRam2. Before starting encryption process, address A of DpRam2 (rAddrA2) is set to 0x00 for writing the first output encrypted data. IvIncrement is regulated through rEncIvIncrement, which can be set by writing to the ENC_IVINC_REG. For setting length of plain data, rEncDataInCnt, ENC_DATAINCNT_REG is written and then rEncStart is asserted to ‘1’ to start encryption as shown in Figure 2‑7.

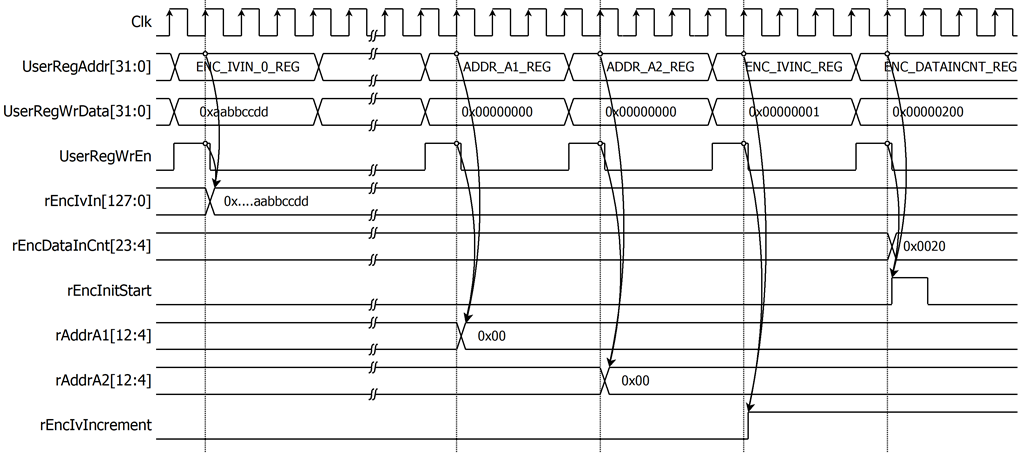

Figure 2‑7 Timing diagram example of encryption parameter setting



For decryption process, decryption IV is set by writing DEC_IVIN_0_REG to DEC_IVIN_3_REG. cipher data, which will be input data for AES256XTSSTGDEC, are stored in DpRam2. Before starting decryption process, address A of DpRam2 (rAddrA2) is set to 0x00 to access the first cipher data. Decrypted data from AES256XTSSTGDEC is stored in DpRam1. Before starting decryption process, address A of DpRam1 (rAddrA1) is set to 0x00 for writing the first output decrypted data. IvIncrement is regulated through rDecIvIncrement, which can be set by writing to the DEC_IVINC_REG. For setting length of cipher data, rDecDataInCnt, DEC_DATAINCNT_REG is written and then rDecStart is asserted to ‘1’ to start decryption as shown in Figure 2‑8.

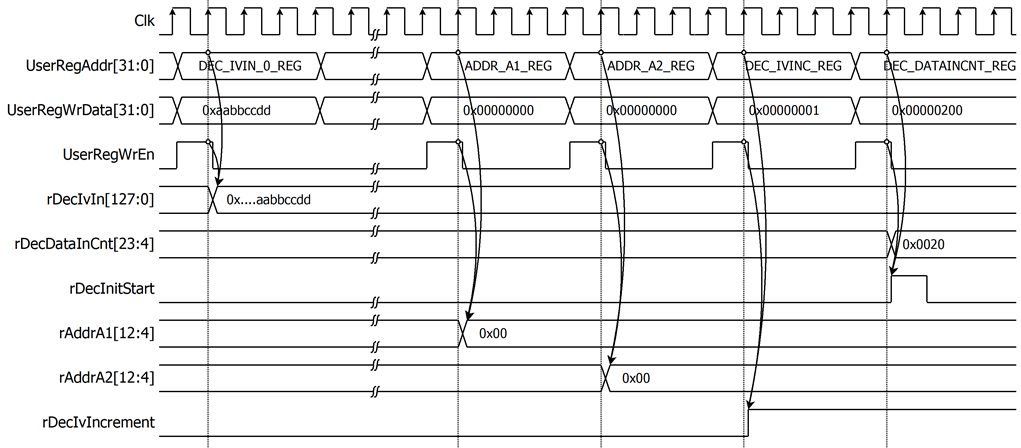

Figure 2‑8 Timing diagram example of decryption parameter setting



2.4.4   Encryption

For encryption process, n-bit plain data, which will be input data for AES256XTSSTGENC, are stored in DpRam1. Before starting encryption process, address A of DpRam1 (rAddrA1) is set to 0x00 to access the first plain data. DpRam1 has wRdEnA1 as the read enable signal of the ram and wRdEnA1 is asserted to ‘1’ when wEncDataInReady=‘1’ and rEncDataInCnt>0. rEncDataInValid is delayed one clock cycle from wRdEnA1. As shown in Figure 2‑9, when wRdEnA1 is active, rEncDataInCnt is decreased by 1 and rAddrA1 is increased by 1 to access next n-bit plain data.

Before starting encryption process, address A of DpRam2 (rAddrA2) is set to 0x00 for writing the first encrypted data. When wEncDataOutValid is active, wEncDataOut is loaded to DpRam2. Then rAddrA2 is increased by 1 prepared for next encrypted output as shown in Figure 2‑9.

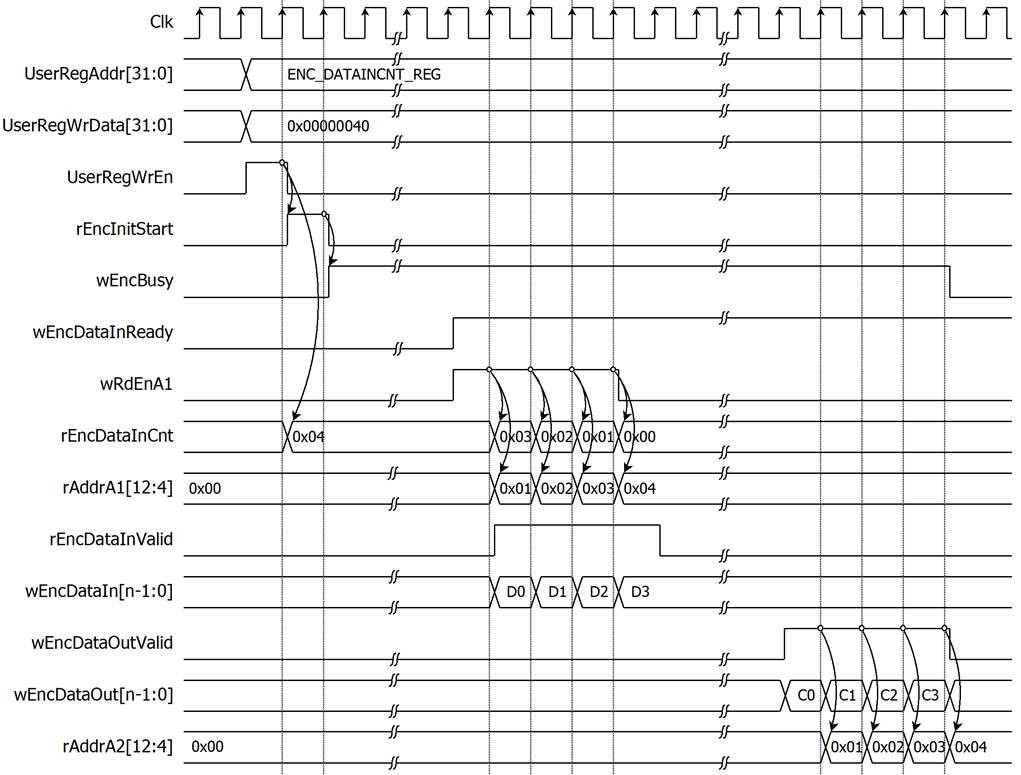

Figure 2‑9 : Example of data encryption timing diagram



2.4.5   Decryption

For decryption process, n-bit cipher data, which will be input data for AES256XTSSTGDEC, are stored inDpRam2. Before starting decryption process, address A of DpRam2 (rAddrA2) is set to 0x00 to access the first cipher data. DpRam2 has wRdEnA2 as the read enable signal of the ram and wRdEnA2 is asserted to ‘1’ when wDecDataInReady=‘1’ and rDecDataInCnt>0. rDecDataInValid is delayed one clock cycle from wRdEnA2. As shown in Figure 2‑10, when wRdEnA2 is active, rDecDataInCnt is decreased by 1 and rAddrA2 is increased by 1 to access next n-bit cipher data.

Before starting decryption process, address A of DpRam1 (rAddrA1) is set to 0x00 for writing the first decrypted data. When wDecDataOutValid is active, wDecDataOut is loaded to DpRam1. Then rAddrA1 is increased by 1 prepared for next decrypted output as shown in Figure 2‑10.





Figure 2‑10 Example of data decryption timing diagram



3       CPU Firmware

After system boot-up, CPU initializes its peripherals such as UART and Timer and shows IP version of AES256XTSSTGIP. Then main menu is displayed. Main function runs in an infinite loop to show the main menu and get keyboard input from user. User can select each menu via serial console that will call the related functions. After functions finished running, the main menu is displayed again. More details of the sequence in each menu are described as follows.



3.1     Set encryption key

This menu is used to set encryption key for encryption module and decryption module. set_key_or_iv function is called to change Ekey set. User can input “enter” key to skip input Ekey and not change current key for encryption module or to skip input Ekey and change key similar to encryption module for decryption module. ENC_EKEYIN_0_REG, DEC_EKEYIN_0_REG, length_hex=64, “rEncEKeyIn”, “rDecEKeyIn” are input parameters. set_key_or_iv function is described in Table 3‑1.



Table 3‑1 set_key_or_iv function



3.2     Set tweakable key

This menu is used to set tweakable key for encryption module and decryption module. set_key_or_iv function is called to change Tkey set. User can input “enter” key to skip input Tkey and not change current key for encryption module or to skip input Tkey and change key similar to encryption module for decryption module. ENC_TKEYIN_0_REG, DEC_TKEYIN_0_REG, length_hex=64, “rEncTKeyIn”, “rDecTKeyIn” are input parameters.



3.3     Set encryption/decryption IV

This menu is used to set Initialization Vector (IV) for encryption module and decryption module. set_key_or_iv function is called to change iv set. User can input “enter” key to skip input iv and not change current key for encryption module or to skip input iv and change key similar to encryption module for decryption module. ENC_IVIN_0_REG, DEC_IVIN_0_REG, length_hex=64, “rEncIvIn”, “rDecIvIn” are input parameters.



3.4     Show Data Memory

This menu is used to show data in memory. User can set the number of data to show on console in byte unit. The sequence of the firmware is as follows.

1)    Receive the length of data in decimal format or “enter” key to use default value. The length of data to show is stored in length.

2)    Call show_data function to show data in memory with PLAIN_BASE_ADDR and length as input parameters. show_data function is described in Table 3‑2.



Table 3‑2 show_data function



3.5     Fill Plain Data Memory

This menu is used to fill DpRam1 with plain data pattern. The sequence of the firmware is as follows.

1)    Receive the length of plain data in decimal format in 512-byte unit or “enter” key to set length of data to default value. The number of data to encrypt is stored in enc_data_cnt.

2)    Call fill_data function to choose data pattern and fill DpRam1 with selected pattern. The input parameter of fill_data is PLAIN_BASE_ADDR which is base address for DpRam1 and enc_data_cnt.

3)    Call show_data function to show data in both DpRam1 and DpRam2 corresponding to enc_data_cnt.

According to Table 3‑3, there are four data pattern choices to fill memory that are zero pattern, 8-bit counter pattern, 16-bit counter pattern and 32-bit counter pattern. For zero pattern, user can select this choice to clear data memory. It makes user see the output of encryption/decryption more clearly.



Table 3‑3 fill_data function

3.6     Encrypt

This menu is used to start encryption process with current encryption parameters. The sequence of the firmware is as follows.

1)    Receive parameter for IvIncrement stored in enc_ivinc_en.

2)    Call aes_command function to set the starting address, IvIncrement value, number of data to encrypt and check status. ENC_IVINC_REG, ENC_CNT_REG, enc_ivinc_en and enc_data_cnt are input parameters. aes_command function is described in Table 3-7.

3)    Print plain data length and call show_data function to show data in memory by the number of plain data.



Table 3-7 aes_command function



3.7     Fill Cipher Data Memory

This menu is used to fill DpRam2 with cipher data pattern. The sequence of the firmware is as follows.

1)    Receive the length of cipher data in decimal format in 512-byte unit or “enter” key to set length of data to default value. The number of data to decrypt is stored in dec_data_cnt.

2)    Call fill_data function to choose data pattern and fill DpRam2 with selected pattern. The input parameter of fill_data is CIPHER_BASE_ADDR which is base address for DpRam2 and dec_data_cnt.

3)    Call show_data function to show data in both DpRam1 and DpRam2 corresponding to dec_data_cnt.



3.8     Decrypt

This menu is used to start decryption process with current decryption parameters. The sequence of the firmware is as follows.

1)    Receive parameter for IvIncrement stored in dec_ivinc_en.

2)    Call aes_command function to set the starting address, IvIncrement value, number of data to decrypt and check status. DEC_IVINC_REG, DEC_CNT_REG, dec_ivinc_en and dec_data_cnt are input parameters.

3)    Print cipher data length and call show_data function to show data in memory by the number of cipher data.



4       Revision History
