This document describes the instruction to demonstrate the operation of AES256XTSIP on FPGA development boards. In the demonstration, AES256XTSIP are used to encrypt and decrypt data between two memories in FPGA. User can fill memory with plain or cipher data patterns, set encryption key, tweakable key, Initialization Vector (IV) and control test operation via Nios II Command Shell.
1 Environment Setup
To operate AES256XTSIP demo, please prepare following test environment.
1) FPGA development board
Agilex F-series development kit. or
Arria10 SoC Development board.
2) Test PC.
3) Micro USB cable for JTAG connection connecting between FPGA boards and Test PC.
4) Quartus programmer for programming FPGA and Nios II command shell, installed on PC.
5) SOF file named “AES256XTS.sof” (To download these files, please visit our web site at www.design-gateway.com)

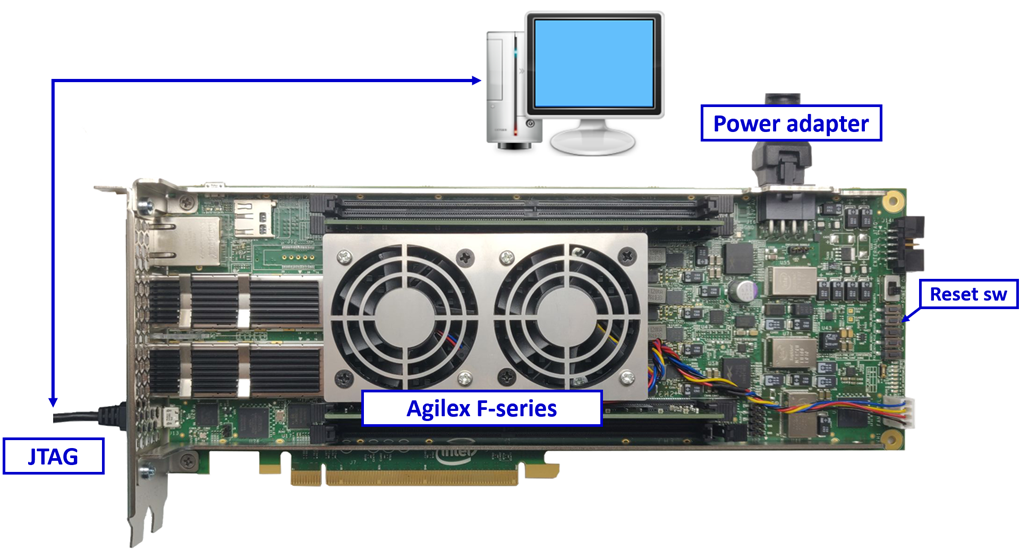

Figure 1‑1 AES256XTSIP demo environment on Agilex F-series board

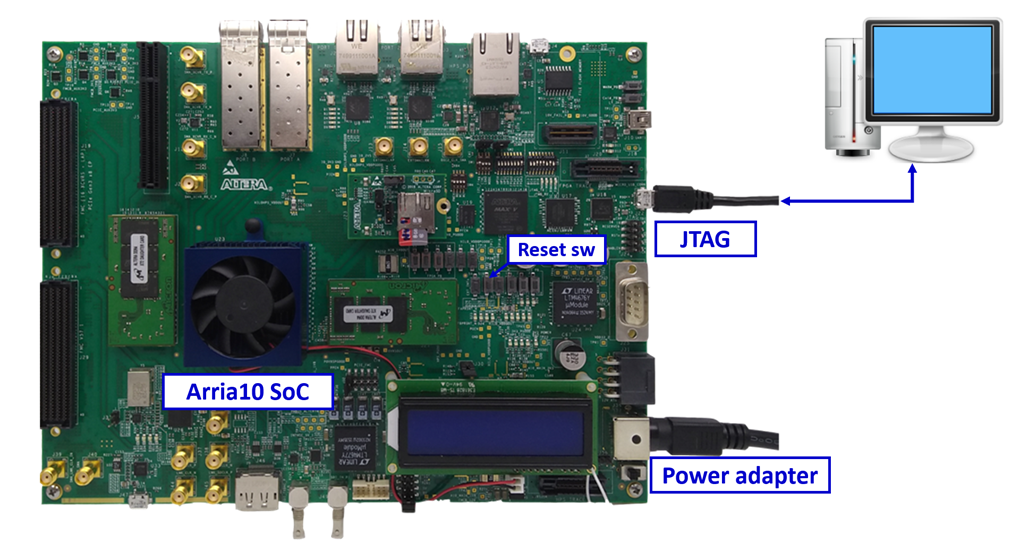

Figure 1‑2 AES256XTSIP demo environment on Arria10 SoC board
2 FPGA development board setup
1) Make sure power switch is off and connect power supply to FPGA development board.
2) Connect USB cables between FPGA board and PC via micro-USB ports.
3) Turn on power switch for FPGA board.
4) Open Quartus Programmer to program FPGA through USB-1 by following step.
i) Click “Hardware Setup…” to select
AGF FPGA Development Kit [USB-1] for Agilex F-series
USB-BlasterII [USB-1] for Arria10 SoC
ii) Click “Auto Detect” and select FPGA number.
iii) Select FPGA device icon (Agilex or A10SoC).
iv) Click “Change File” button, select SOF file in pop-up window and click “open” button.
v) Check “program”.
vi) Click “Start” button to program FPGA.
vii) Wait until Progress status is equal to 100%.

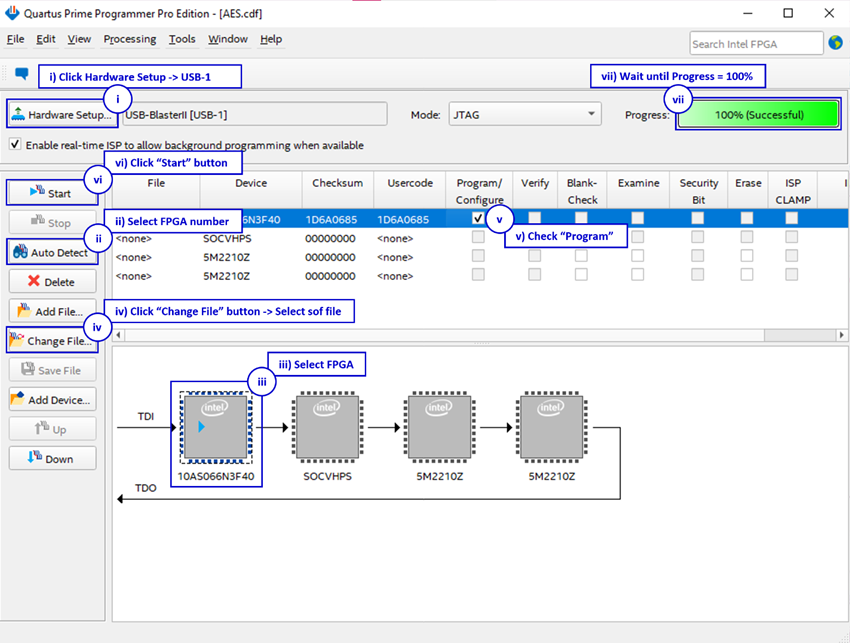

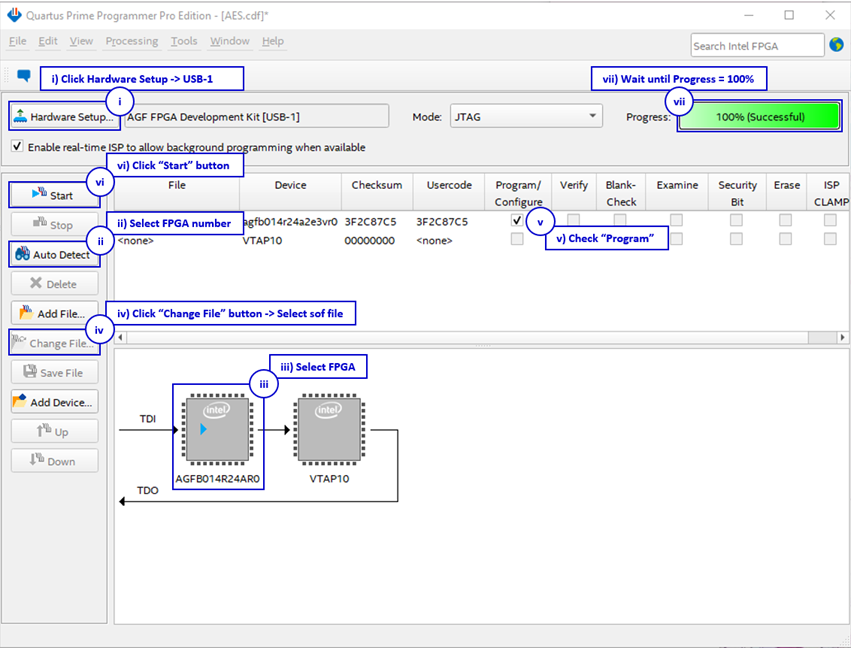

Figure 2‑1 FPGA Programmer for Agilex
Figure 2‑2 FPGA Programmer for A10SoC

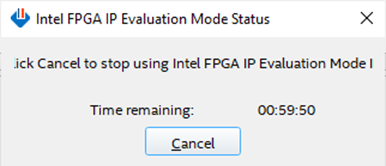

For A10SoC after program SOF file complete, Quartus Prime will show popup message of Intel FPGA IP Evaluation Mode Status as shown in Figure 2‑3. Please do not press cancel button.
Figure 2‑3 Intel FPGA IP Evaluation Mode Status
3 Nios II Command Shell

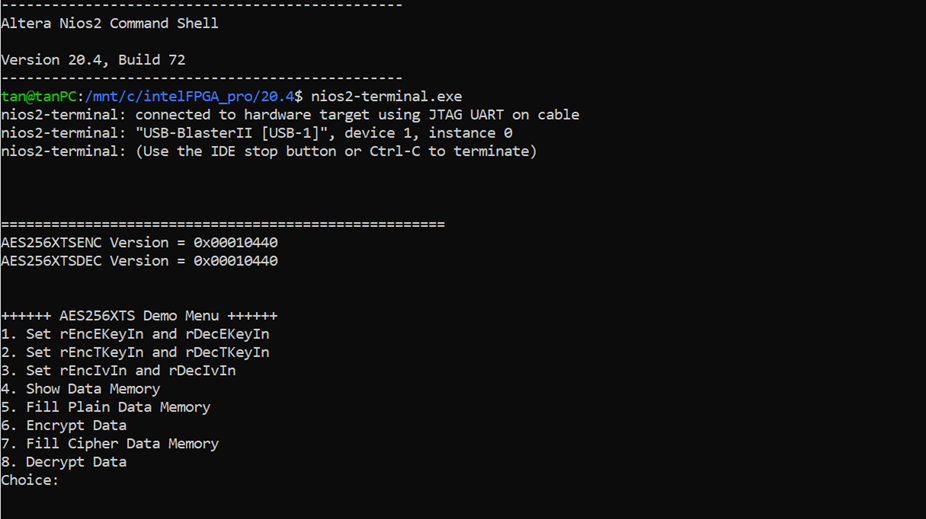

User can fill RAMs with plain or cipher data patterns, set encryption key, set tweakable key, IV and control test operation via Nios II Command Shell. When configuration is completed, AES256XTSdemo command menu will be displayed as shown in Figure 3‑1. The detailed information of each menu is described in topic 4.
Figure 3‑1 Nios II Command Shell
4 Command detail and testing result
4.1 Set encryption key
Step to set encryption key as follows
a) Select “1. Set rEncEKeyIn and rDecEKeyIn”.
b) Current rEncEKeyIn will be displayed on Nios II Command Shell as shown in Figure 4‑1.
c) Set new rEncEKeyIn: User is allowed to input new key in hex format or press “enter” to skip setting new key. Then the current encryption key is printed again.
d) Current rDecEKeyIn key will be displayed on Nios II Command Shell.
e) Set new rDecEKeyIn key: User is allowed to input new key in hex format or press “enter” to use rEncEKeyIn as rDecEKeyIn. Then the current decryption key is printed again.

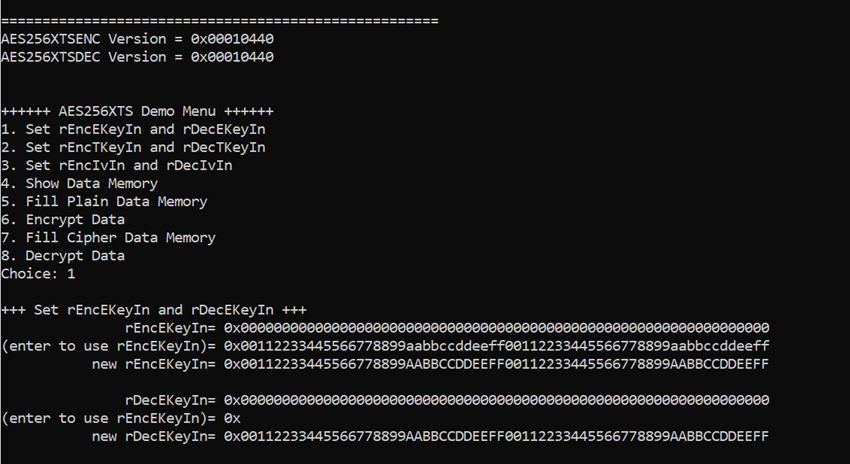

Figure 4‑1 Set rEncEKeyIn and rDecEKeyIn example
4.2 Set tweakable key
Step to set tweakable key as follows
a) Select “2. Set rEncTKeyIn and rDecTKeyIn”.
b) Current rEncTKeyIn will be displayed on Nios II Command Shell as shown in Figure 4‑2.
c) Set new rEncTKeyIn: User is allowed to input new key in hex format or press “enter” to skip setting new key. Then the current encryption key is printed again.
d) Current rDecTKeyIn will be displayed on Nios II Command Shell.
e) Set new rDecTKeyIn: User is allowed to input new key in hex format or press “enter” to use rEncTKeyIn as rDecTKeyIn. Then the current decryption key is printed again.

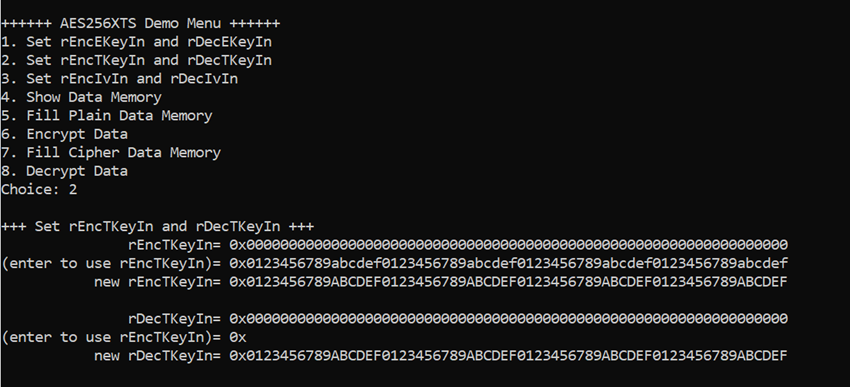

Figure 4‑2 Set rEncTKeyIn and rDecTKeyIn example
4.3 Set encryption/decryption IV
Step to Set encryption/decryption IV as follows
a) Select “3. Set rEncIvIn and rDecIvIn”.
b) Current rEncIvIn will be displayed on Nios II Command Shell as shown in Figure 4‑3.
c) Set new rEncIvIn: User is allowed to input new IV in hex format or press “enter” to skip setting new key. Then the current encryption IV is printed again.
d) Current rDecIvIn will be displayed on Nios II Command Shell.
e) Set new rDecIvIn: User is allowed to input new IV in hex format or press “enter” to use rEncIvIn as rDecIvIn. Then the current decryption IV is printed again.

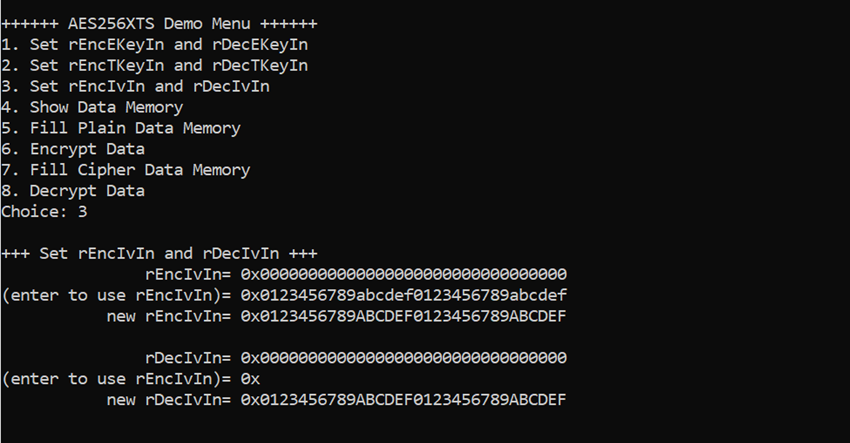

Figure 4‑3 Set rEncIvIn and rDecIvIn example
4.4 Show Data Memory

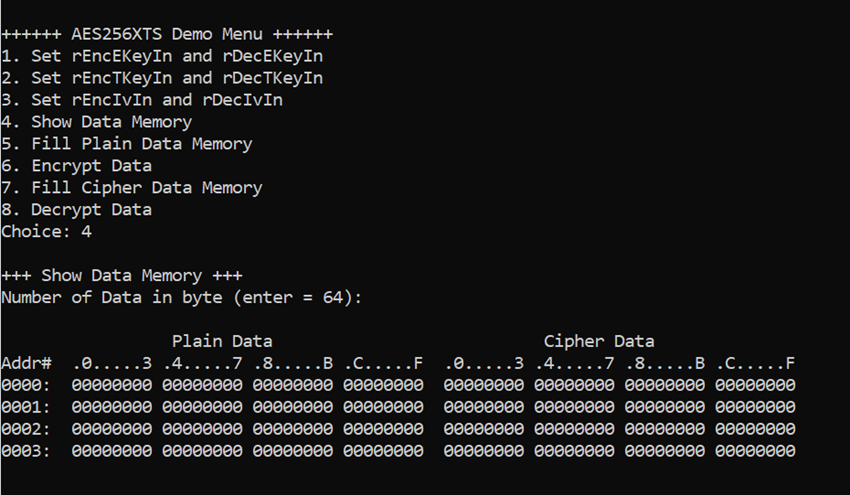

To show data in memory, user can select “4. Show Data Memory” and input the desired length of data in byte to show. Both plain data and cipher data will be displayed in table-form as shown in Figure 4‑4. User can press “enter” key to skip putting the number of data, then Nios II Command Shell will display 64 bytes (default value) of plain data and cipher data at address 0x0000-0x003F in four rows of table.
Figure 4‑4 Displayed Data when press “enter” key
4.5 Fill Plain Data Memory
Step to fill plain data in memory as follows
a) Select “5. Fill Plain Data Memory”.
b) Input the desired length of data in byte. User can press “enter” to encrypt 16 Byte plain data. user can select data pattern.
c) There are four pattern to fill memory.
a. zero pattern
b. 8-bit counter
c. 16-bit counter
d. 32-bit counter
d) Whole plain-data memory is filled with selected data pattern.

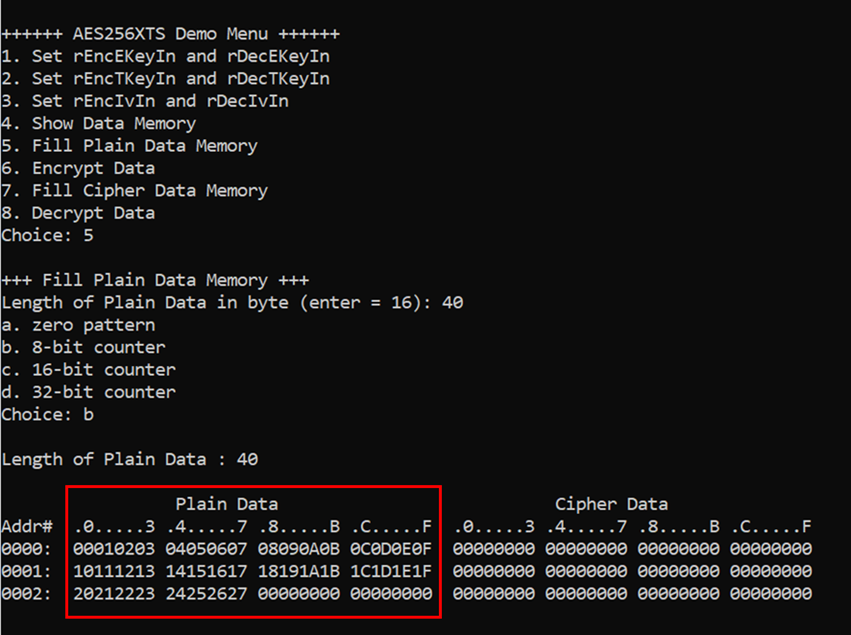

Figure 4‑5 Displayed Data when select pattern b
4.6 Encrypt

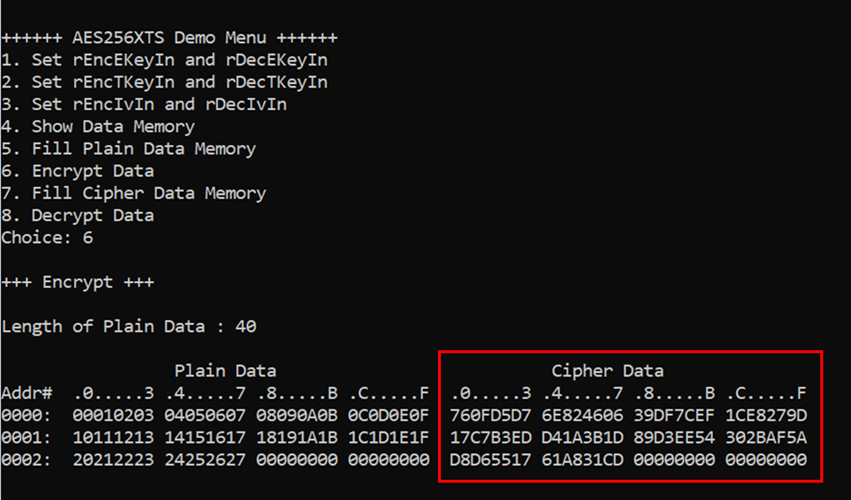

Select “6. Encrypt” to encrypt plain data in memory. When the encryption process is finished, both plain data and cipher data will be displayed in table-form as shown in Figure 4‑6.
Figure 4‑6 Nios II Command Shell after finished encryption process
4.7 Fill Cipher Data Memory
Step to fill Cipher data in memory as follows
a) Select “7. Fill Cipher Data Memory”.
b) Input the desired length of data in byte. User can press “enter” to decrypt 16 Byte Cipher data. user can select data pattern.
c) There are four pattern to fill memory.
a. zero pattern
b. 8-bit counter
c. 16-bit counter
d. 32-bit counter
d) Whole cipher-data memory is filled with selected data pattern.

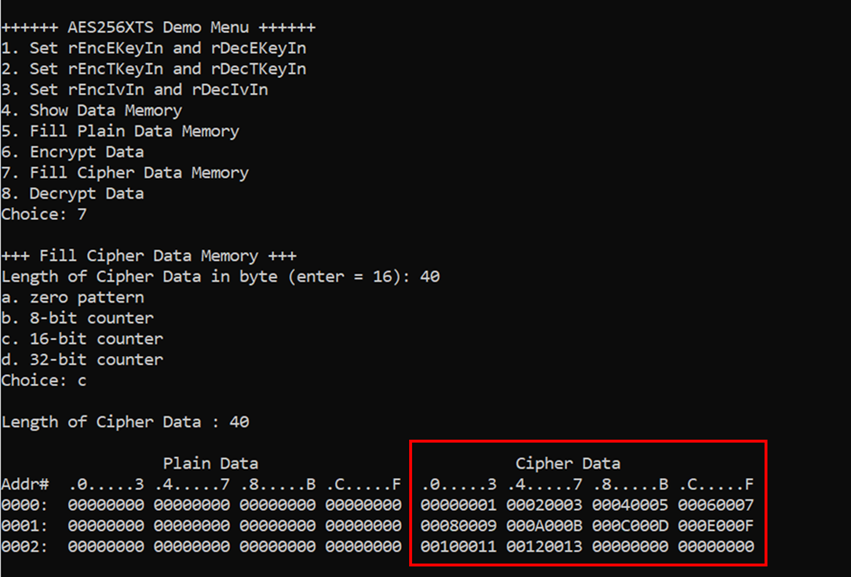

Figure 4‑7 Displayed Data when select pattern c
4.8 Decrypt

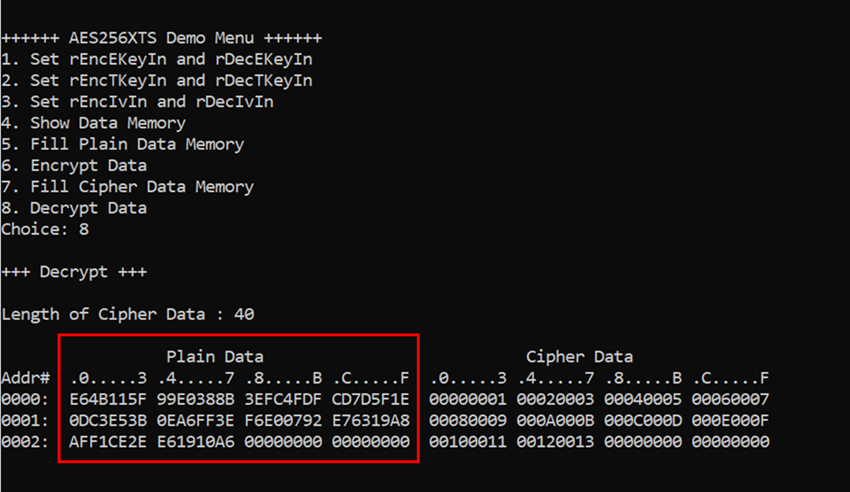

Select “8. Decrypt Data” to decrypt cipher data in memory. When the decryption process is finished, both plain data and cipher data will be displayed in table-form as shown in Figure 4‑8.
Figure 4‑8 Nios II Command Shell after finished decryption process
