ChaCha20Poly1305Lite-IP Demo Instruction
4 Command Details and Test Results
1 Environment Setup
To operate ChaCha20Poly1305Lite-IP demo, please prepare the following test environment.
1) FPGA development board.
2) Test PC.
3) Micro USB cable for JTAG connection between FPGA board and Test PC.
4) Micro USB cable for UART connection between FPGA board and Test PC.
5) Vivado tool for programming FPGA installed on Test PC.
6) Serial console software such as TeraTerm installed on PC. The setting on the console is Baudrate=115200, Data=8-bit, Non-parity and Stop=1.
7) Demo configuration file (To download this file, please visit our web site at www.design-gateway.com).

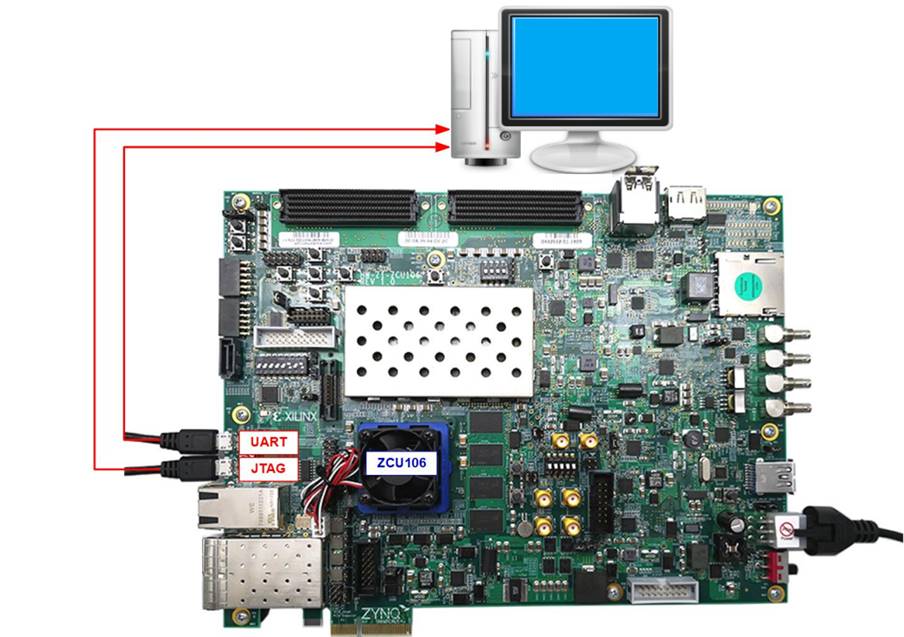

Figure 1 ChaCha20Poly1305Lite-IP demo environment on ZCU106 board
2 ZCU106 Board Setup
1) Make sure power switch is off and connect power supply to FPGA development board.
2) Connect USB cable between PC and JTAG micro USB port.
3) Power on the system.
4) Download configuration file and firmware to FPGA board by following steps:
a) Open Vivado TCL shell.
b) Change current directory to download folder which includes demo configuration file.

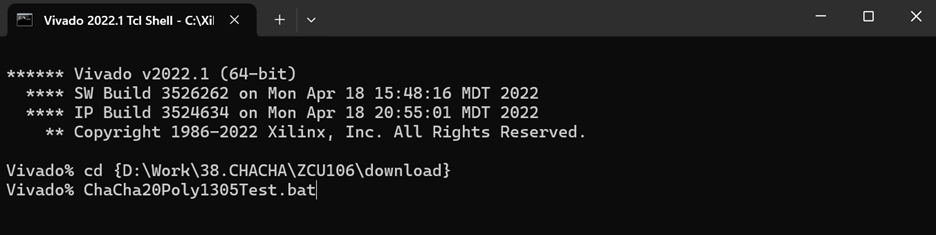

c) Run bat script to program bit file, as shown in Figure 2.
Figure 2 Program device on ZCU106
3 Serial Console

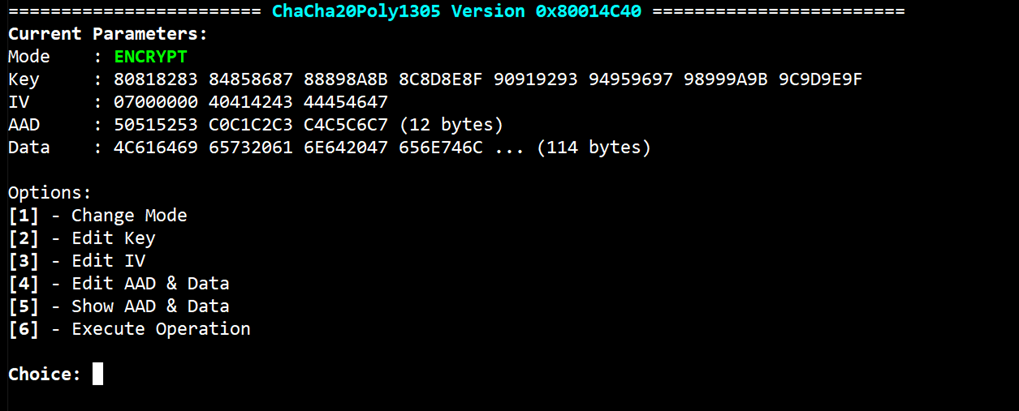

User can fill RAMs with AAD, IV, Input Data, and encryption/decryption key via serial console. The current parameters are shown together with the available options in the main menu as shown in Figure 3. The details of each menu are described in topic 4.
Figure 3 Serial console main menu
4 Command Details and Test Results
4.1 Change Mode
Select “Change Mode” from the main menu to switch the ChaCha20Poly1305Lite-IP operation mode. The available options are shown in Figure 4.
1) ENCRYPT: Encrypts Input Data stored in memory.
2) DECRYPT: Decrypts Input Data stored in memory.
3) BYPASS: Bypasses Input Data stored in memory without encryption or decryption.

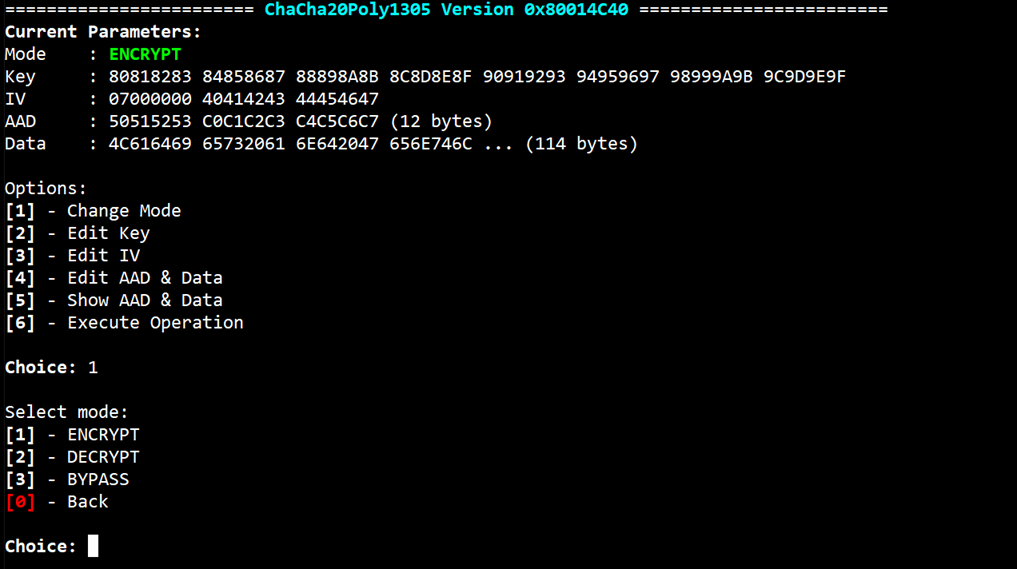

Figure 4 Change mode menu
4.2 Edit Key

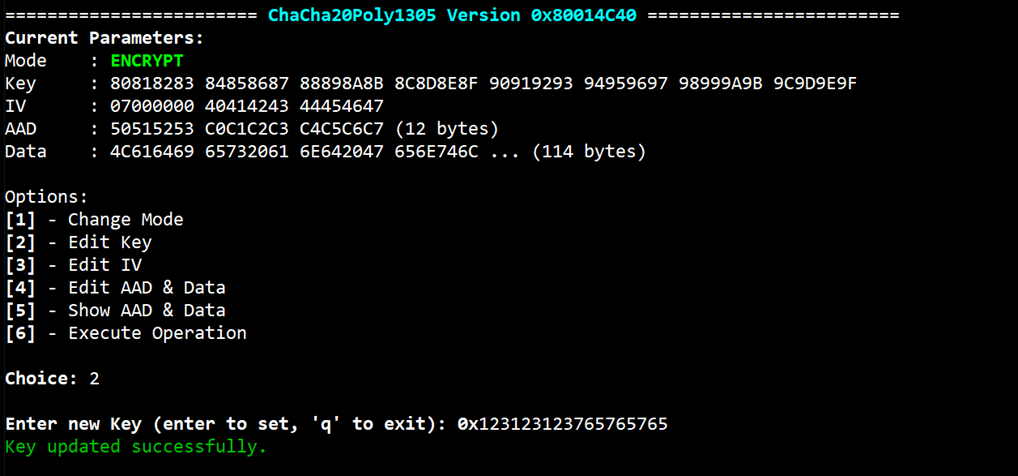

The steps to edit key are as follows:
1) Select “Edit Key”.
2) Enter up to 256-bit key value in hexadecimal format as shown in Figure 5.
3) After pressing Enter, the new key value will be updated and displayed in the main menu.
Figure 5 Key setting example
4.3 Edit IV

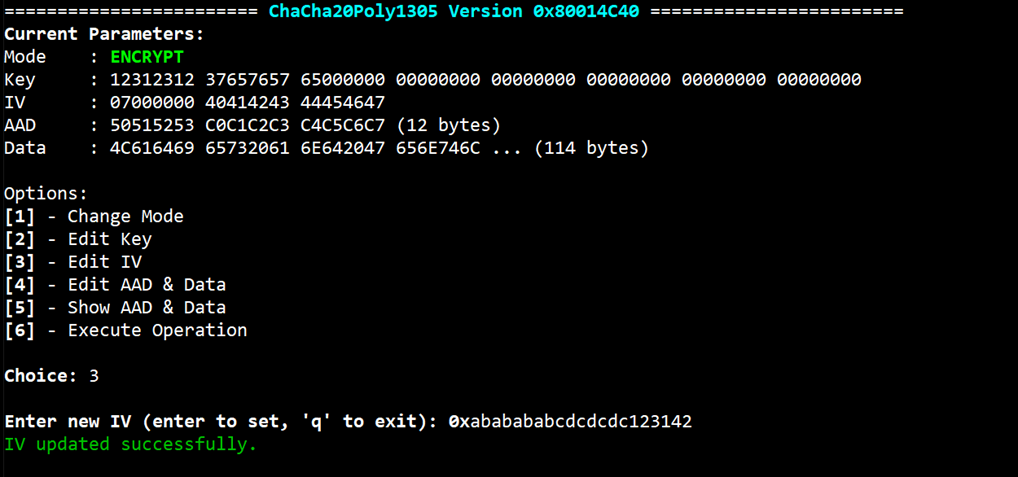

The steps to edit IV are as follows:
1) Select “Edit IV”.
2) Enter up to 96-bit IV value in hexadecimal format as shown in Figure 6.
3) After pressing Enter, the new IV value will be updated and displayed in the main menu.
Figure 6 IV setting example
4.4 Edit AAD & Data

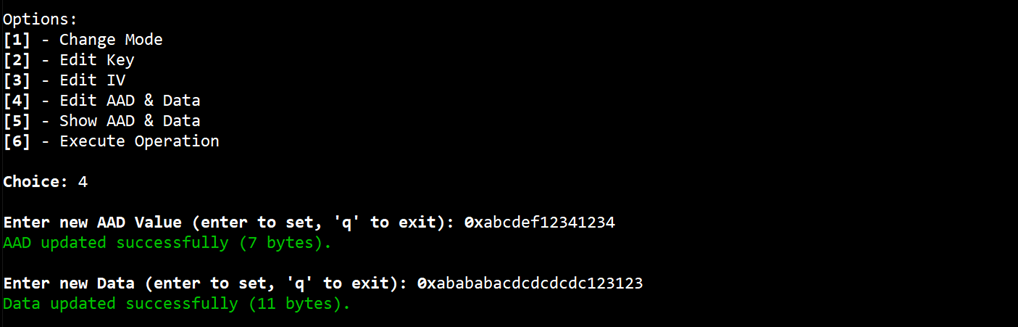

Select “Edit AAD & Data” to update AAD and Data in memory. User must update both AAD and Data in this menu. Editing differs by mode:
1) Enter AAD value in hexadecimal and press Enter.
2) Enter Data value in hexadecimal as shown in Figure 7 and press Enter.
3) After both inputs, the new values and sizes are updated and shown in the main menu.
Notes:
· Combined AAD + Data size cannot exceed 16 KB.
· In Decrypt mode, Data is treated as Ciphertext; in Encrypt mode, it is Plaintext.
Figure 7 AAD & Data setting example in other modes
4.5 Show AAD & Data
The steps to show AAD & Data in memory are as follows:
1) Select “Show AAD & Data”
2) Enter the number of bytes to display (or press Enter to display all).
3) The AAD and Data values are shown in table form as shown in Figure 8.
4) After pressing Enter, the console will return to the main menu.

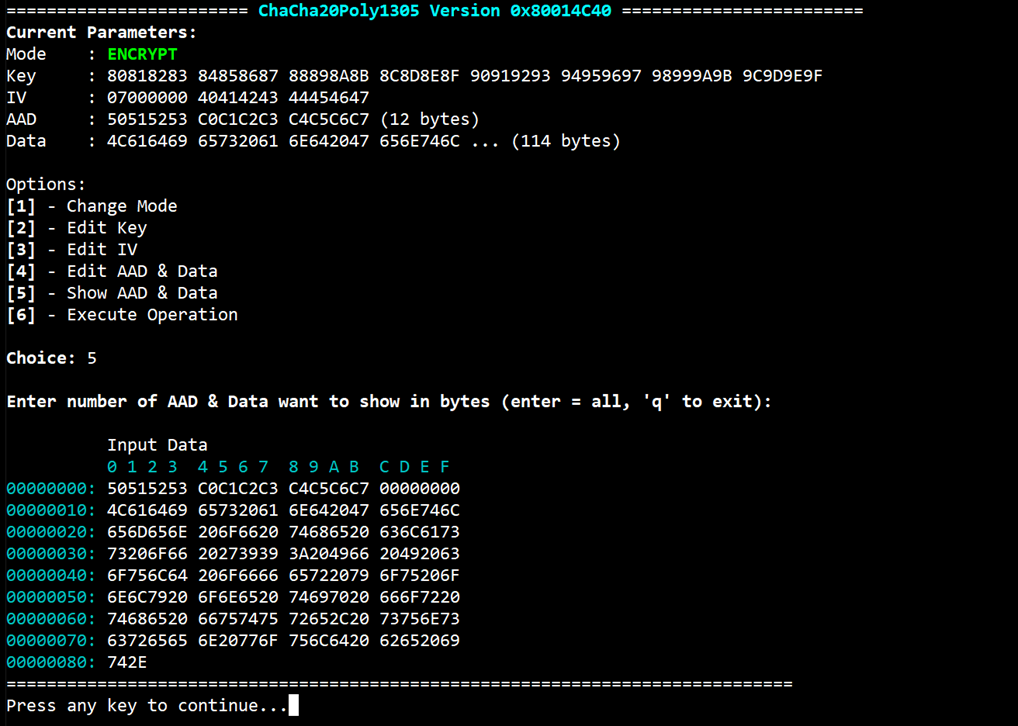

Figure 8 Show AAD & Data example
4.6 Execute Operation
Select “Execute Operation” to start the operation in the currently selected mode.
4.6.1 Encrypt

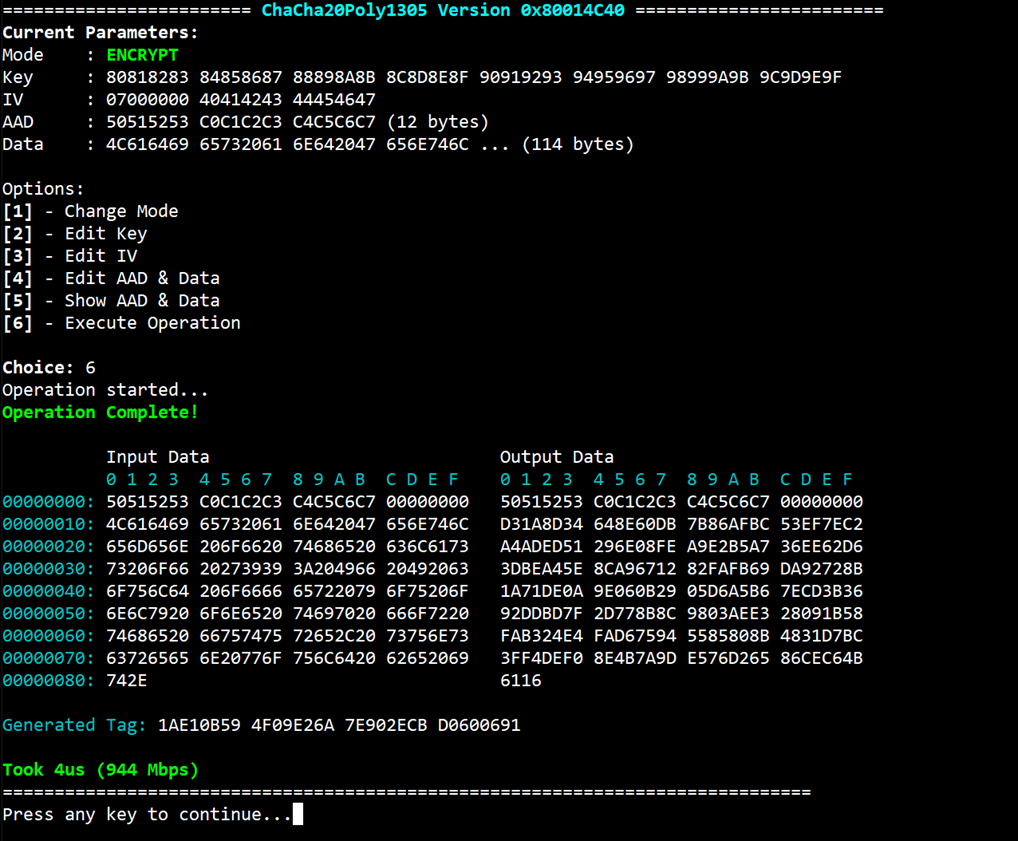

In Encrypt mode, the IP uses the current key and IV to encrypt the Input Data in memory. The Output Data (Ciphertext) and 128-bit authentication tag are displayed as shown in Figure 9.
Figure 9 Encryption mode result
4.6.2 Decrypt

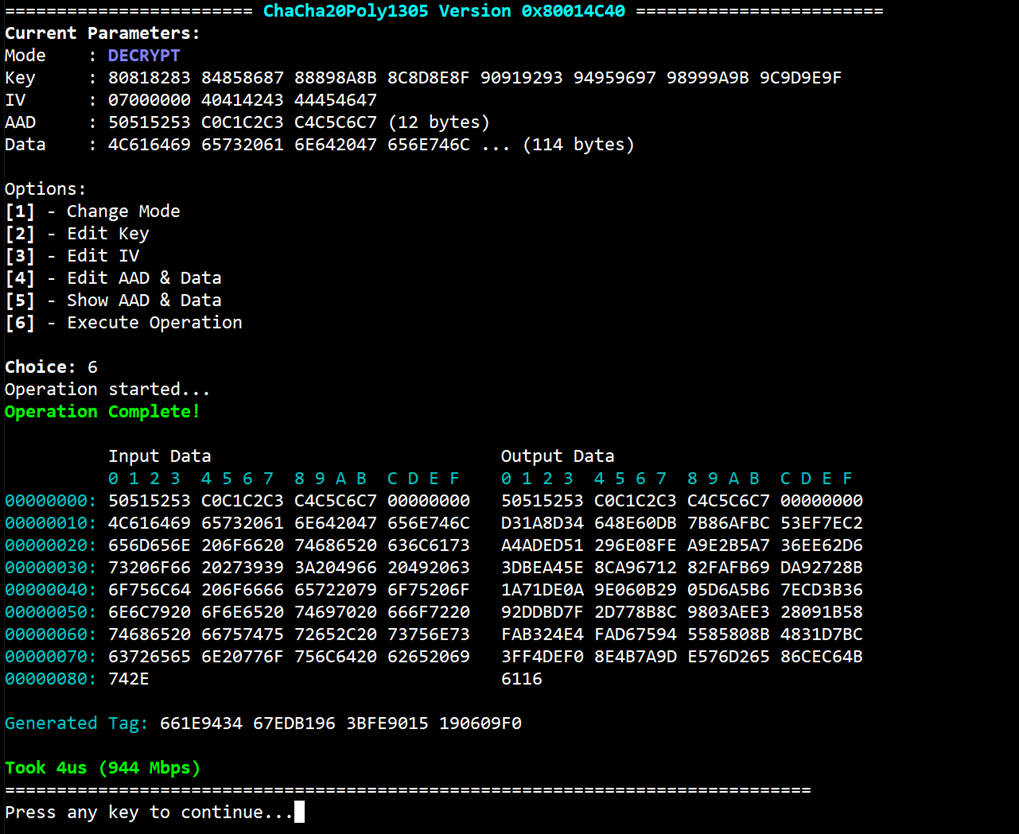

In Decrypt mode, the IP uses the current key and IV to decrypt the Input Data in memory. The Output Data (recovered Plaintext) and the 128-bit authentication tag are displayed as shown in Figure 10.
Figure 10 Decryption mode result
4.6.3 Bypass
In Bypass mode, the IP simply passes the Input Data from memory to output memory without any encryption or decryption. Both Input Data and Output Data are displayed as shown in Figure 11.
Figure 11 Bypass mode result
5 Revision History
|
Revision |
Date (D-M-Y) |
Description |
|
1.00 |
31-Jul-26 |
Initial version release |
