1 Introduction

This document describes the details of the QUIC Client 10Gbps IP core (QUIC10GC-IP) reference design. In this reference design, the QUIC10GC-IP is used as a medium to transfer data within a secure connection following the QUIC transport protocol version 1 standard (RFC9000). This process involves handling the TLS 1.3 handshake and dealing with data encryption/decryption and flow control. Users can set network parameters, download and upload payloads to the server by inputting supported command via the serial console. Further details regarding the hardware design and CPU firmware are provided below.

2 Hardware Overview

Figure 1 QUIC10GC-IP reference design block diagram

In this test environment, two devices are used to transfer data over a 10G Ethernet connection. The FPGA acts as the QUIC Client, while the target device, which can be either a PC or another FPGA, acts as the QUIC Server. As shown in Figure 1, the QUIC10GC-IP is integrated within UserReg. UserReg connects to the CPU through AsyncAXIReg using a register interface, and the CPU connects to AsyncAXIReg via an AXI4-Lite interface.

The user interface of the QUIC10GC-IP connects to DDR memory through an AXI4 interface to read data from the Transmit Buffer and write data to the Receive Buffer. In addition, the user logic within UserReg is responsible for controlling and configuring the QUIC10GC-IP core.

There are four system clocks in this reference design, i.e., CPUClk, QUICClk, MacTxClk and MacRxClk. CpuClk is used to interface with CPU through AXI4-Lite bus. QUICClk is the clock domain on which the QUIC10GC-IP operates and interfaces with users. MacTxClk is the clock domain which is synchronous to Tx EMAC interface. MacRxClk is the clock domain which is synchronous to Rx EMAC interface.

The details of each module are described as follows.

2.1 AsyncAxiReg

This module is designed to convert the signal interface of AXI4-Lite to be register interface. Also, it enables two clock domains to communicate.

To write register, RegWrEn is asserted to ‘1’ with the valid signal of RegAddr (Register address in 32-bit unit), RegWrData (write data of the register), and RegWrByteEn (the byte enable of this access: bit[0] is write enable for RegWrData[7:0], bit[1] is used for RegWrData[15:8], …, and bit[3] is used for RegWrData[31:24]).

To read register, AsyncAxiReg asserts RegRdReq=’1’ with the valid value of RegAddr (the register address in 32-bit unit). After that, the module waits until RegRdValid is asserted to ‘1’ to get the read data through RegRdData signal at the same clock.

The address of Register interface is shared for both write and read transactions, so user cannot write and read the register at the same time. The timing diagram of the Register interface is shown Figure 2.

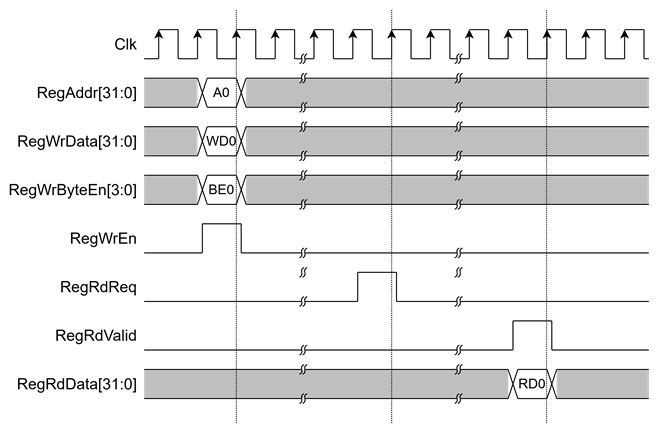

Figure 2 Register interface timing diagram

2.2 UserReg

For register file, UserReg is designed to write/read registers, control and check alert of the QUIC10GC-IP corresponding with write register access or read register request from AsyncAvlReg module. The memory map inside UserReg module is shown in Table 1.

Table 1 Register map Definition of QUIC10GC-IP

Address offset	Register Name	Description
Ethernet MAC register
0x0060	EMAC_VER_INTREG	Rd[31:0]: Ethernet MAC version number (MacIPVersion).
0x0064	EMAC_STS_INTREG	Rd[0]: Ethernet link-up status (MacLinkup).
QUIC10GC Control register
0x0100	QUIC_RSTB_REG	Wr/Rd[0]: Reset signal active low (rQUICRstBOut).
0x0104	QUIC_CONN_REG	Wr/Rd[0]: User’s Connection status (rQUICConnOn). Wr/Rd[1]: User’s enable signal to attempt opening a connection with 0-RTT (rQUICTryZeroRTT).
0x0108	QUIC_BUSY_REG	Rd[3]: Data receive busy status (QUICRxTrnsBusy). Rd[2]: Data transmit busy status (QUICTxTrnsBusy) Rd[1]: Handshake busy status (QUICHandshakeBusy). Rd[0]: Connection busy status (QUICConnOnBusy).
0x010C	QUIC_ALERT_REG	Rd[15:0]: Alert and status code (QUICAlertCode[15:0]).
0x011C	QUIC_VER_REG	Rd[31:0]: QUIC10GC-IP version (QUICIPVersion[31:0]).
QUIC User Data
0x0200- 0x023C	QUIC_TX_USER_PTR_REG[X]	Rd[18:0]: Read pointer of streamID ‘X’ to indicate the first byte position of TxData that IP will process (wAppTxRdAddr[((X+1)*19)-1:X*19]). Wr[18:0]: Write pointer of streamID ‘X’ to indicate the position after the last TxData written (rAppTxWrAddr[((X+1)*19)-1:X*19]).
0x0240- 0x027C	QUIC_TX_USER_FINAL_REG[X]	Wr[0]: Set the end stream flag of the current Tx write pointer for StreamID ‘X’ (rAppTxWrFin[X])
0x0280- 0x02BC	QUIC_RX_USER_PTR_REG[X]	Rd[18:0]: Write pointer of streamID ‘X’ to indicate the position after the last RxData written (wAppRxWrAddr[((X+1)*19)-1:X*19]). Wr[18:0]: Read pointer of streamID ‘X’ to indicate the first byte of RxData that user will process (rAppRxRdAddr[((X+1)*19)-1:X*19]).
0x02C0- 0x02FC	QUIC_RX_USER_FINAL_REG[X]	Rd[0]: Indicating the end of stream has been received for streamID ‘X’ (AppRxWrFin[X])
0x0300	QUIC_TX_BASE_ADDR_LOW_REG	Wr[31:0]: Lower 32 bits of the base address for the transmit buffer (AppTxBaseAddr[31:0])
0x0304	QUIC_TX_BASE_ADDR_HIGH_REG	Wr[31:0]: Upper 32 bits of the base address for the transmit buffer (AppTxBaseAddr[63:32])
0x0308	QUIC_RX_BASE_ADDR_LOW_REG	Wr[31:0]: Lower 32 bits of the base address for the receive buffer (AppRxBaseAddr[31:0])
0x030C	QUIC_RX_BASE_ADDR_HIGH_REG	Wr[31:0]: Upper 32 bits of the base address for the receive buffer (AppRxBaseAddr[63:32])
0x0310	QUIC_STM_OPENED_REG	Rd[15:0]: Stream opened status (AppStmOpened).
0x0320	QUIC_RX_USER_INFO_READ_REG	Rd[0]: Empty status of QUICRxInfo FIFO, storing QUIC Rx user information (UsrRxInfoFfEmpty). Wr[0]: Set read enable to QUICRxInfo FIFO (UsrRxInfoFfEmpty).
0x0324	QUIC_RX_USER_COMMON_REG	Rd[7:0]: QUIC Rx user information type (QUICRxInfoType[7:0]). Rd[15:8]: QUIC Rx user information streamID (QUICRxInfoID[7:0]).
0x0330- 0x0334	QUIC_RX_USER_INFO0_REG	Rd[31:0]: QUIC Rx user information field 0 (QUICRxInfoD0[63:0])
0x0340- 0x0344	QUIC_RX_USER_INFO1_REG	Rd[31:0]: QUIC Rx user information field 1 (QUICRxInfoD1[63:0])
QUIC Parameter
0x0500- 0x050C	QUIC_ALPN_DATA_REG	Wr[31:0]: ALPN string value (rQUICALPNStr[127:0]).
0x0510	QUIC_ALPN_LEN_REG	Wr[4:0]: ALPN string length (rQUICALPNLen[4:0]).
0x0520- 0x053C	QUIC_RANDOM_REG	Rd[31:0]: Random number in ClientHello message. (Random[255:0])
0x0540- 0x055C	QUIC_ECATS_REG	Rd[31:0]: Client Early Application Traffic Secret (rECATS[255:0])
0x0560- 0x057C	QUIC_CHTS_REG	Rd[31:0]: Client Handshake Traffic Secret (rCHTS[255:0])
0x0580- 0x059C	QUIC_SHTS_REG	Rd[31:0]: Server Handshake Traffic Secret (rSHTS[255:0])
0x05A0- 0x05BC	QUIC_CATS_REG	Rd[31:0]: Client Application Traffic Secret (rCATS[255:0])
0x05C0- 0x05DC	QUIC_SATS_REG	Rd[31:0]: Server Application Traffic Secret (rSATS[255:0])
0x05E0	QUIC_KEY_VALID_REG	Rd[2:0]: Ready status for key material (rQUICKeyReady[2:0])
0x05E4	CERT_STARTADDR_REG	Wr[11:1]: Start address for CertRam (rUserRamCertAddr[11:1]).
0x05E8	CERT_READY_REG	Wr/Rd[0]: Ready status for certificate information. (rUserCertReady).
0x05EC	QUIC_ZERORTT_READY_REG	Wr/Rd[0]: Ready status for 0-RTT parameters (rQUICParamsReady).
0x0600	QUIC_UDP_SRCMAC_LOW_REG	Wr[31:0]: Lower 32 bits of source MAC address (rSrcMacAddr[31:0]).
0x0604	QUIC_UDP_SRCMAC_HIGH_REG	Wr[15:0]: Upper 16 bits of source MAC address (rSrcMacAddr[47:32]).
0x0608	QUIC_UDP_SRCIP_REG	Wr[31:0]: Source IP address (rSrcIPAddr[31:0])
0x060C	QUIC_UDP_DSTIP_REG	Wr[31:0]: Destination IP address (rDstIPAddr[31:0])
0x0610	QUIC_UDP_SRCPORT_REG	Wr[15:0]: Source port number (rSrcPort[15:0]).
0x0614	QUIC_UDP_DSTPORT_REG	Wr[15:0]: Destination port number (rDstPort[15:0]).
0x0618	QUIC_UDP_GTWIP_REG	Wr[31:0]: Gateway IP address (rGatewayIPAddr[31:0]).
0x061C	QUIC_UDP_SUBNETMASK_REG	Wr[4:0]: Subnet mask in CIDR notation (rSubnetMask[4:0]).
0x061C	QUIC_UDP_IPNETSET_REG	Wr[0]: Set IP network parameters (rNetworkSet).
0x0700- 0x07FF	QUIC_SNI_BASE_REG	Wr[15:0]: Server Name Indication (SNI) string in SNIRam (wQUICSNIWrData[15:0]).
0x0800	QUIC_SNI_LEN_REG	Wr[7:0]: Defines the number of valid bytes in the SNI string (rQUICSNILen[7:0]).
0x1000- 0x1FFF	CERTRAM_BASE_ADDR	Rd[31:0]: Certificate data in CertRam (wRamCertRdData[31:0]).
0x4000- 0x47FF	ZERORTTRAM_BASE_ADDR	Wr/Rd[15:0]: 0-RTT resumption parameter storage.

Storing Certificate information

The QUIC10GC-IP is designed to provide certificates to the user for Certificate Validity Verification. In this reference design, a dual-port RAM is used to store the certificate information. As shown in Figure 3, the signals QUICCertValid, QUICCertByteEn[1:0] and QUICCertData[15:0] are used to write certificate information to CertRam. Users can write to the CERT_STARTADDR_REG to set rUserRamCertAddr[11:1] as the start address for storing certificate information. The rUserRamCertAddr is an 11-bit counter that increments by 1 when QUICCertValid is asserted. This address serves as the write address for writing QUICCertData to CertRam. When QUICCertLast is asserted to ‘1’, rUserCertReady is set to ‘1’, indicating that the certificate data is ready.

Figure 3 Example timing diagram of storing 959-byte certificate information

Key Material information

The QUIC10GC-IP provides external access to the cryptographic keying material derived during packet protection. This allows users to monitor the TLS handshake state and access secrets for external cryptographic operations or debugging.

As shown in Figure 4, the key update process is controlled by the QUICKeyValid output signal. When QUICKeyValid is asserted high, it indicates that a new set of key materials has been successfully generated. At the same time, the QUIC10GC-IP updates the following values according to the handshake phase defined by QUICKeyType[1:0]:

· rQUICKeyReady[2:0]: A status vector reflecting the readiness of different key types.

· rRandom[255:0]: The 256-bit Random value from the ClientHello message.

· rECATS[255:0]: The Early Client Application Traffic Secret (for 0-RTT data).

· rCHTS[255:0]: The Client Handshake Traffic Secret.

· rSHTS[255:0]: The Server Handshake Traffic Secret.

· rCATS[255:0]: The Client Application Traffic Secret (for 1-RTT data).

· rSATS[255:0]: The Server Application Traffic Secret (for 1-RTT data).

Users can access rQUICKeyReady[2:0] through QUIC_KEY_VALID_REG to confirm when a parameter is ready for use.

Figure 4 Example timing diagram of key material update behavior

Memory Allocation in DDR for User Streams

The QUIC10GC-IP does not perform dynamic memory management. Instead, users must allocate a continuous block of DDR memory space for both transmit and receive buffers. The base addresses for each direction are configured through AppTxBaseAddr[63:0] and AppRxBaseAddr[63:0], respectively.

In this reference design, the DDR memory is partitioned into fixed-size buffers for each stream. Each stream is assigned a 512 KB region and the total number of streams is 16.

Table 2 Example Buffer Mapping per Stream

Stream ID	Tx Address Range (Offset from AppTxBaseAddr)	Rx Address Range (Offset from AppRxBaseAddr)	Type
0	0x000000 – 0x07FFFF	0x000000 – 0x07FFFF	Client-initiated, bidirectional
1	0x080000 – 0x0FFFFF	0x080000 – 0x0FFFFF	Server-initiated, bidirectional
2	0x100000 – 0x17FFFF	0x100000 – 0x17FFFF	Client-initiated, unidirectional
3	0x180000 – 0x1FFFFF	0x180000 – 0x1FFFFF	Server-initiated, unidirectional
4	0x200000 – 0x27FFFF	0x200000 – 0x27FFFF	Client-initiated, bidirectional
5	0x280000 – 0x2FFFFF	0x280000 – 0x2FFFFF	Server-initiated, bidirectional
6	0x300000 – 0x37FFFF	0x300000 – 0x37FFFF	Client-initiated, unidirectional
7	0x380000 – 0x3FFFFF	0x380000 – 0x3FFFFF	Server-initiated, unidirectional
8	0x400000 – 0x47FFFF	0x400000 – 0x47FFFF	Client-initiated, bidirectional
9	0x480000 – 0x4FFFFF	0x480000 – 0x4FFFFF	Server-initiated, bidirectional
10	0x500000 – 0x57FFFF	0x500000 – 0x57FFFF	Client-initiated, unidirectional
11	0x580000 – 0x5FFFFF	0x580000 – 0x5FFFFF	Server-initiated, unidirectional
12	0x600000 – 0x67FFFF	0x600000 – 0x67FFFF	Client-initiated, bidirectional
13	0x680000 – 0x6FFFFF	0x680000 – 0x6FFFFF	Server-initiated, bidirectional
14	0x700000 – 0x77FFFF	0x700000 – 0x77FFFF	Client-initiated, unidirectional
15	0x780000 – 0x7FFFFF	0x780000 – 0x7FFFFF	Server-initiated, unidirectional

HTTP/3 Minimum Stream Requirement Compliance

According to RFC 9114 - HTTP/3, a compliant HTTP/3 implementation must support at least three client-initiated bidirectional streams for concurrent HTTP request/response pairs, and at least three client-initiated unidirectional streams for protocol-level control (e.g., Control, QPACK encoder, and QPACK decoder streams).

This reference design supports 16 streams total, with each stream assigned a fixed 512 KB buffer in DDR memory. The stream types are automatically determined by the two least significant bits of the Stream ID (StreamID[1:0]):

· 00 — Client-initiated, bidirectional

· 01 — Server-initiated, bidirectional

· 10 — Client-initiated, unidirectional

· 11 — Server-initiated, unidirectional

With 16 streams, the system supports up to:

· bidirectional client streams (StreamIDs 0, 4, 8, 12)

· unidirectional client streams (StreamIDs 2, 6, 10, 14)

This ensures that the design is fully compliant with the HTTP/3 minimum stream requirements. For detailed stream management rules, refer to https://datatracker.ietf.org/doc/html/rfc9114#section-6

2.3 Ethernet Subsystem

The Ethernet Subsystem operates across multiple protocol layers, including the MAC (Media Access Control), PCS (Physical Coding Sublayer), and PMA (Physical Medium Attachment) layers. These layers work for interface with external devices using the 10G BASE-R standard. The QUIC10GC-IP communicates with the Ethernet MAC via a 32-bit AXI4-stream interface.

This document presents two different Ethernet Subsystem implementations: the DG LL10GEMAC-IP, the 10G/25G Ethernet Subsystem from AMD Xilinx. Detailed descriptions of each solution are provided below.

2.3.1 DG LL10GEMAC-IP

Figure 5 Ethernet Subsystem using DG LL10GEMAC-IP

2.3.1.1 LL10GEMAC

The IP core by Design Gateway implements low-latency EMAC and PCS logic for 10Gb Ethernet (BASE-R) standard. The user interface is 32-bit AXI4-stream bus. Please see more details from LL10GEMAC datasheet on our website.

https://dgway.com/products/IP/Lowlatency-IP/dg_ll10gemacip_data_sheet_xilinx_en/

2.3.1.2 Xilinx Transceiver (PMA for 10GBASE-R)

PMA IP core for 10Gb Ethernet (BASE-R) can be generated by using Vivado IP catalog. In FPGA Transceivers Wizard, the user uses the following settings.

· Transceiver configuration preset                        : GT-10GBASE-R

· Encoding/Decoding                             : Raw

· Transmitter Buffer                               : Bypass

· Receiver Buffer                                                 : Bypass

· User/Internal data width                                     : 32

The example of Transceiver wizard in Ultrascale model is described in the following link.

https://www.xilinx.com/products/intellectual-property/ultrascale_transceivers_wizard.html

2.3.1.3 PMARstCtrl

When the buffer inside Xilinx Transceiver is bypassed, the user logic must control reset signal of Tx and Rx buffer. The module is designed by state machine to run following step.

· Assert Tx reset of the transceiver to ‘1’ for one cycle.

· Wait until Tx reset done, output from the transceiver, is asserted to ‘1’.

· Finish Tx reset sequence and de-assert Tx reset to allow the user logic beginning Tx operation.

· Assert Rx reset to the transceiver.

· Wait until Rx reset done is asserted to ‘1’.

· Finish Rx reset sequence and de-assert Rx reset to allow the user logic beginning Rx operation.

2.3.2 10G/25G Ethernet Subsystem

Figure 6 Ethernet Subsystem using 10G/25G Ethernet Subsystem

Alternatively, the 10G/25G Ethernet Subsystem can be used. This subsystem includes MAC, PCS, and PMA layers in a single IP block and can be generated using the Vivado IP catalog with the following configuration:

· Select Core             : Ethernet MAC+PCS/PMA 32-bit

· Speed                     : 10.3125G

· Data Path Interface  : AXI Stream

The example of 10G/25G Ethernet Subsystem in Ultrascale model is described in the following link.
https://www.xilinx.com/products/intellectual-property/ef-di-25gemac.html

3 CPU Firmware

After system boot-up, CPU initializes its peripherals such as UART and Timer. Then the supported command usage is displayed. The main function runs in an infinite loop to receive line command input from the user. Users can set the network and connection parameter, display key materials and certificate information, download/upload data and test performance using the supported commands. More details of the sequence in each command are described as follows.

3.1 Set Gateway IP Address

command> setgatewayip ddd.ddd.ddd.ddd

Users can set a Gateway IP address for the QUIC10GC-IP by inputing setgatewayip followed by the desired Gateway IP address in dotted-decimal format. The setip function is called to change the Gateway IP address value in netparam variable. This variable will be written to the register mapped to GatewayIPAddr to set the FPGA’s IP address. Subsequently, the QUIC10GC-IP is initialized with the current network parameter setting. The default Gateway IP address is 0.0.0.0. The setip function is described in Table 3.

3.2 Set FPGA IP Address

command> setip ddd.ddd.ddd.ddd[/nn]

This command configures the IP address and subnet mask for the QUIC10GC-IP. Users must input setip followed by the desired IPv4 address in dotted-decimal format. Optionally, the subnet mask can be specified in CIDR notation (e.g., /24). If the CIDR suffix is omitted, a default value of /24 is applied. The setip function updates the IP configuration parameters in the netparam variable, which are then written to the hardware registers mapped to SrcIPAddr[31:0] and SubnetMask[4:0]. This sets the FPGA’s static IP address and network prefix length. After the register write operation completes, the QUIC10GC-IP is reinitialized with the new network parameters. The default FPGA IP configuration is 192.168.7.42/24. The setip function is described in Table 3.

Table 3 setip function

int setip(uint8_t *string, uint32_t *ip_set)
Parameter	string: ip address as string input from user ip_set: array stored IP address
Return value	0: Valid input, -1: Invalid input
Description	This function receives IP Address as string input and set value of ip_set array.

3.3 Set FPGA MAC address

command> setmac hh-hh-hh-hh-hh-hh

Users can set a MAC address to the QUIC10GC-IP by inputing setmac followed by the FPGA’s MAC address in hexadecimal format. The setmac function is called to change the MAC address value in netparam variable. This array will be written to the register mapped to SrcMacAddr to set the FPGA’s MAC address. The default FPGA’s MAC address is 80-01-02-03-04-05. The setmac function is described in Table 4.

Table 4 setmac function

int setmac(uint8_t *string, uint64_t *mac_set)
Parameter	string: MAC address as string input from user mac_set: array stored mac address
Return value	0: Valid input, -1: Invalid input
Description	This function receives MAC Address as string input and set value of mac_set array.

3.4 Load network parameters

command> loadnetworkparameters

This command configures network parameters and must be run before connecting to the network. When executed, it sets the current Gateway IP address, FPGA’s IP address, subnet mask, and FPGA’s MAC address to the QUIC10GC-IP while the NetworkSet signal is asserted to ‘1’.

3.5 Set FPGA Port Number

command> setport ddddd

Users can set a port number to the QUIC10GC-IP by inputting setport followed by the static port number of the FPGA in decimal format or “dynamic”, “d” or “-d” to set the port number to be dynamic. The setport function is called to change the port number value in netparam variable. This variable will be written to the register mapped to SrcPort to set the FPGA’s port number. Dynamic ports are in the range 49152 to 65535. If the port number is set to be dynamic, the port number will be automatically increased by 1 before establishing a new connection. If the port number is set as a static port number and the user does not set the new port number value, the FPGA’s port number will not be changed. The setport function is described in Table 5.

Table 5 setport function

int setmac(uint8_t *string, uint64_t *mac_set)
Parameter	string: port number as string input from user port_set: array stored port number
Return value	0: Valid input, -1: Invalid input
Description	This function receives port number as string input and set value of port_set array.

3.6 Show key materials

command> showkey <1: enable, 0: disable>

To change showkey mode, users can input showkey <1: enable, 0: disable> to modify a global variable, bshowTrafficSecret. If bshowTrafficSecret is set to true, traffic tickets will be displayed on the serial console after the handshake process is completed. Users can use the TLS traffic ticket as a (Pre)-Master-Secret log file for Wireshark* to decrypt transferred data over the current connection.

*Wireshark, a network packet analyzer tool used for network troubleshooting, analysis, and security purposes.

3.7 Show certificate information

command> showcert <1: enable, 0: disable>

To change showcert mode, users can input showcert <1: enable, 0: disable> to modify a global variable, bshowCertificate. If bshowCertificate is set to true, certificate information will be displayed on the serial console after the certificate is ready during the handshake phase. Users can use the certificate information for further certificate validity verification.

3.8 Show session parameters

command> showsessionparams <1: enable, 0: disable>

To change the session parameter display mode, users can input showsessionparams <1: enable, 0: disable> to modify a global variable, bshowSessionParams. If bshowSessionParams is set to true, the negotiated session parameters for 0-RTT resumption will be displayed on the serial console after they are received from the server and stored. This information is essential for debugging the QUIC transport layer and verifying the parameters that will be used for future Zero-RTT connection attempts.

When enabled, the following session parameters are displayed:

· Server Name: The target server for the session.

· Initial Flow Control Limits:

o InitMaxData: The initial maximum data allowed on the connection.

o InitMaxStreamDataBiLocal: The initial maximum data for locally-initiated bidirectional streams.

o InitMaxStreamDataBiRemote: The initial maximum data for remotely-initiated bidirectional streams.

o InitMaxStreamDataUni: The initial maximum data for unidirectional streams.

· Initial Stream Count Limits:

o InitMaxStreamBi: The maximum number of concurrent bidirectional streams.

o InitMaxStreamUni: The maximum number of concurrent unidirectional streams.

· Pre-Shared Key (PSK) Identity: The 32-byte PSK identity (PreSharedKey).

· New Session Ticket Details:

o TicketLifetime: The lifetime of the ticket in seconds.

o TicketAgeAdd: The obfuscation value for the ticket age.

o TicketLength: The length of the ticket value in bytes.

o TicketValue: The session ticket itself (displayed in hexadecimal, truncated if longer than 32 bytes).

· TimeStamp: A timestamp indicating when the parameters were stored.

3.9 Download data pattern with HTTP GET command

command> myGET https://hostname[:port]/urlpath

Where                   hostname              represents the server’s domain name or IP address in dot-decimal notation

port                       represents server’s port number

size                      represents the path to the desired resource on the server

This command simulates an HTTP GET request over QUIC to download data from a server. The myGET function processes the input URL, configures network and protocol parameters, initializes registers, and manages the data reception sequence.

If the user specifies a domain name as the hostname, the function first checks for a match in the local hostname-to-IP mapping table. If a match exists, the corresponding IP address is used. If no match is found, the user is prompted to manually enter the IP address, which is then stored in the mapping table for future use.

If the user does not specify a port number, the default port 443 is automatically selected.

If valid 0-RTT parameters for the target server are available in the local storage, the function will automatically attempt to open the connection using 0-RTT resumption. This reduces the handshake latency by eliminating a full round trip before sending application data.

The detailed operation of the myGET function is as follows:

· Split the URL input and set network parameters corresponding to the URL.

· Construct an HTTP GET command from the URL.

· Open connection and wait for the handshake process to finish.

· Copy the HTTP GET command into the transmit buffer and update the write pointer using QUIC_TX_USER_PTR_REG to initiate the GET request over QUIC.

· Monitor HTTP header response and validate HTTP data length.

· During data reception, the software updates the read pointer via QUIC_RX_USER_PTR_REG as data arrives. It accumulates the total received length and checks for stream completion.

· Compute and display transfer speed on the serial console until the reception of data is complete. If the received data length is less than 4 kB, the received data will also be shown on the serial console.

Table 6 myGET function

int myGET(uint8_t *string)
Parameter	string: URL as string input from user
Return value	0: Valid input, -1: Invalid input
Description	This function receives URL as string input and validate URL. Monitor and display receiving result.

3.10 Upload data pattern with HTTP POST command

command> myECHO https://hostname[:port]/echo size

Where                   hostname              represents the server’s domain name or IP address in dot-decimal notation

port                       represents server’s port number

size                      represents data length in byte

This command simulates POST method of HTTP to upload data pattern to the server. myECHO function is called to extract the server’s IP address and the server’s port number, set registers to start data generator and verify data pattern, monitor status. The sequence of the myECHO function is as follows

· Split the URL input and set network parameters corresponding to the URL.

· Construct an HTTP POST command from the URL and request size.

· Open connection and wait for the handshake process to finish.

· Copy the HTTP POST command and pattern payload into the transmit buffer flush the cache, and update the transmit write pointer via QUIC_TX_USER_PTR_REG. Repeat this process in chunks until the full requestSize is sent. Once completed, write to QUIC_TX_USER_FINAL_REG to mark the end of stream.

· Monitor HTTP header response, validate HTTP data length.

· Enter the receive data phase. As data is received, compare each chunk against the original pattern, update the read pointer using QUIC_RX_USER_PTR_REG, and track the total received length.

· Compute and display transfer speed on the serial console until the reception of data is complete. If the received data length is less than 4 kB, the received data will also be shown on the serial console.

Table 7 myPOST function

int myECHO(uint8_t *string, uint8_t *reqSize)
Parameter	urlStr: URL as string input from user reqSize: Upload length as string input from user
Return value	0: Valid input, -1: Invalid input
Description	This function receives a URL string input from the user, validates it, constructs an HTTP POST command, and sends it before transferring data to the server. It monitors the number of transferred data bytes to show the transfer speed.

3.11 Upload and Download data pattern like secnetperf

command> myPERF hostname[:port] uploadlength downloadlength

Where                   hostname              represents the server’s domain name or IP address in dot-decimal notation

port                       represents server’s port number

uploadlength          represents upload data length in byte

downloadlength     represents download data length in byte

This command uses for performance testing using the unique application protocol with MsQuic. myPERF function is called to extract the server’s IP address and the server’s port number, set registers to start data generator and verify data pattern, monitor status. The sequence of the myPERF function is as follows.

· Split the URL input and set network parameters corresponding to the URL.

· Open connection and wait for finishing handshake process.

· Write the downloadlength to transmit buffer for request download data from MsQuic

· If uploadSize is greater than zero, the software copies pattern data into the transmit buffer and flushes the cache to ensure memory consistency. It updates the transmit write pointer by writing to QUIC_TX_USER_PTR_REG for each chunk. This process repeats until all data is written. After the final chunk, it writes to QUIC_TX_USER_FINAL_REG to signal the end of stream. Completion is monitored via QUIC_BUSY_REG.

· If downloadSize is greater than zero, the software reads from QUIC_RX_USER_PTR_REG to check how much data has been received and compares it against the original pattern. When verified, the read pointer is updated via QUIC_RX_USER_PTR_REG. It checks QUIC_RX_USER_FINAL_REG to detect the end-of-stream condition. If the received data length exceeds the expected downloadSize or any mismatch occurs, an error is reported.

· Compute and display transfer speed on the serial console until the reception of data is complete. If the received data length is less than 4 kB, the received data will also be shown on the serial console.

Table 8 myPERF function

int myPERF(uint8_t * netAddress, uint8_t * upSize, uint8_t * downSize)
Parameter	netAddress: URL as string input from user upSize: Upload length as string input from user downSize: Download length as string input from user
Return value	0: Valid input, -1: Invalid input
Description	This function receives parameter string input by the user, validates the parameters before transferring data to the server, and monitors the number of transferred data to show the transfer speed.

4 Revision History

Revision	Date (D-M-Y)	Description
1.03	3-Dec-25	- Update information in Table 2.
1.02	15-Oct-25	- Support 0-RTT resumption. - Support subnet mask.
1.01	15-Jul-25	- Support use DDR memory. - Support AMD 10G/25G Ethernet subsystem.
1.00	3-Jul-24	Initial version release
