1       Introduction

This document describes detailed reference design of tCAMIP for search/replace function via 10 Gigabit Ethernet. The contents including detailed of hardware design and software function.

The important hardware modules are “TOE10GIP_FIFO.vhd” and “SearchReplace.vhd” will be described in this document.



2       Hardware overview

Figure 2‑1 show reference design block diagram, that used 10 Gigabit Ethernet for communication between software on test PC and SearchReplace module in KCU116 board.







Figure 2‑1 Reference design block diagram





2.1     TOE10GIP

This part is contained TOE10GIP, TenGMacIF and Top10GPHY modules. Please visit our website https://dgway.com/TOE-IP_X_E.html for more information.



2.2     TOE10GIP_FIFO

TOE10GIP_FIFO module is designed for 3 operations, 1st is initialized TOE10GIP, 2nd is passing every 64-bit data from TOE10GIP to SearchReplace module, 3rd is passing every 64-bit data from SearchReplace module to TOE10GIP. The signals are described as Table 2‑1



Table 2‑1 I/O signals

Signal

Dir

Description

RstB

In

Reset module. Active Low.

Clk

In

System clock.

RegAddr[3:0]

Out

TOE10GIP Register address bus.

RegWrData[31:0]

Out

TOE10GIP Register write data bus. Synchronous to RegAddr signal for write process.

RegWrEn

Out

TOE10GIP Register write enable pulse. Synchronous to RegAddr and RegWrData signals.

RegRdData[31:0]

In

TOE10GIP Register read data bus.

Busy

In

TOE10GIP Busy flag is connected from signal RegDataA1(0).

TCPRxFfRdCnt[12:0]

In

TOE10GIP Received buffer data counter to show total received data in the buffer as 64-bit unit.

TCPRxFfRdEn

Out

TOE10GIP Received buffer read enable. Assert to ‘1’ to read data from Received buffer.

TCPRxFfRdData[63:0]

In

TOE10GIP Received buffer read data bus. Valid in the next clock cycle after TCPRxFfRdEn is asserted to ‘1’.

TCPTxFfWrEn

Out

TOE10GIP Transmit buffer write enable. Assert to ‘1’ to write data to Transmit buffer.

TCPTxFfWrData[63:0]

Out

TOE10GIP Transmit buffer write data bus. Synchronous with TCPTxFfWrEn.

dataInValid

Out

dataIn valid. Assert to ‘1’ when data is valid on dataIn.

dataIn[63:0]

Out

dataIn bus. Synchronous with dataInValid.

dataOutValid

In

dataOut valid. Assert to ‘1’ to write data to Transmit buffer.

dataOut[63:0]

In

dataOut bus. Synchronous with dataOutValid.





2.2.1   Initial TOE10GIP

After release RstB = ‘1’, TOE10GIP_FIFO start initial TOE10GIP by write all registers by count down rSequence as Table 2‑2. After that when Busy signal from TOE10GIP is ‘0’, it means TOE10GIP is ready to communication. Figure 2‑2 show timing diagram of register writing for initial TOE10GIP.



Table 2‑2 Sequence of initialized register writing

rSequence

RegAddr

RegWrData

Description

B

0000b

0x00000001

active soft reset of TOE10GIP to be '1'

A

1110b

0x00000000

set TOE10GIP to be client mode

9

1100b

0x00000000

set not enable window update feature

8

1001b

0x00006000

set timeout value to 0x00006000

7

0111b

0x0000EA60

set source port number to 60000

6

0110b

0x0000EA61

set destination port number to 60001

5

0101b

0xC0A80750

set source IP to 192.168.7.80

4

0100b

0xC0A80751

set source IP to 192.168.7.81

3

0011b

0x00001122

set 16-bit upper MAC address to 0x1122

2

0010b

0x33445566

set 32-bit lower MAC address to 0x33445566

1

0000b

0x00000000

release soft reset of TOE10GIP to be '0'

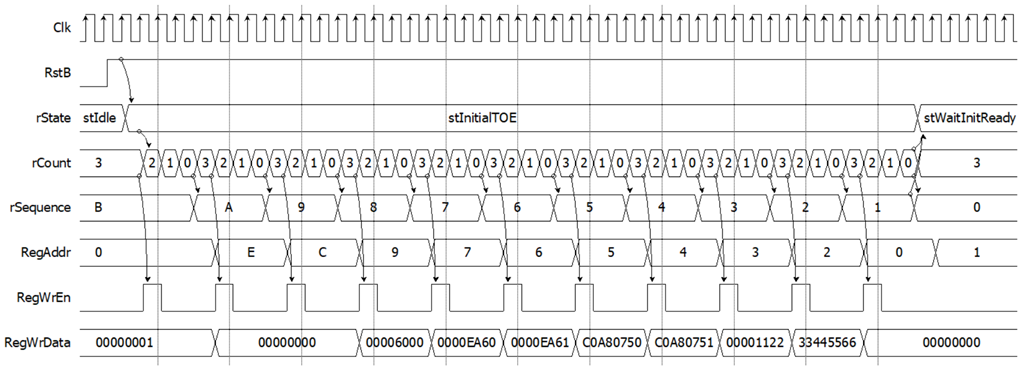

Figure 2‑2 Timing diagram of register writing for initial TOE10GIP





2.2.2   Receive dataIn from test PC

When TOE10GIP received packet data from test PC, the TCPRxFfRdCnt is increased to be not zero. TOE10GIP_FIFO start read data from TOE10GIP with number of TCPRxFfRdCnt. Then dataIn valid and dataInValid is active at next cycle from TCPRxFfRdEn signal. Figure 2‑3 show detailed timing diagram of Receive 8x64-bit dataIn from TOE10GIP.







Figure 2‑3 Timing diagram of receive 8x64-bit dataIn from TOE10GIP





2.2.3   Send dataOut to test PC

When dataOutValid and dataOut is directly connect to TCPTxFfWrEn and TCPTxFfWrData respectively. TOE10GIP_FIFO is designed to detect at the end of data when dataOutValid is changed from ‘1’ to ‘0’. TOE10GIP_FIFO will write data count (rFifoWrCount) to TDL register, then write 0x00000000 to CMD register of TOE10GIP for transfer data to test PC. Figure 2‑4 show detailed timing diagram of Send 8x64-bit dataOut to TOE10GIP.







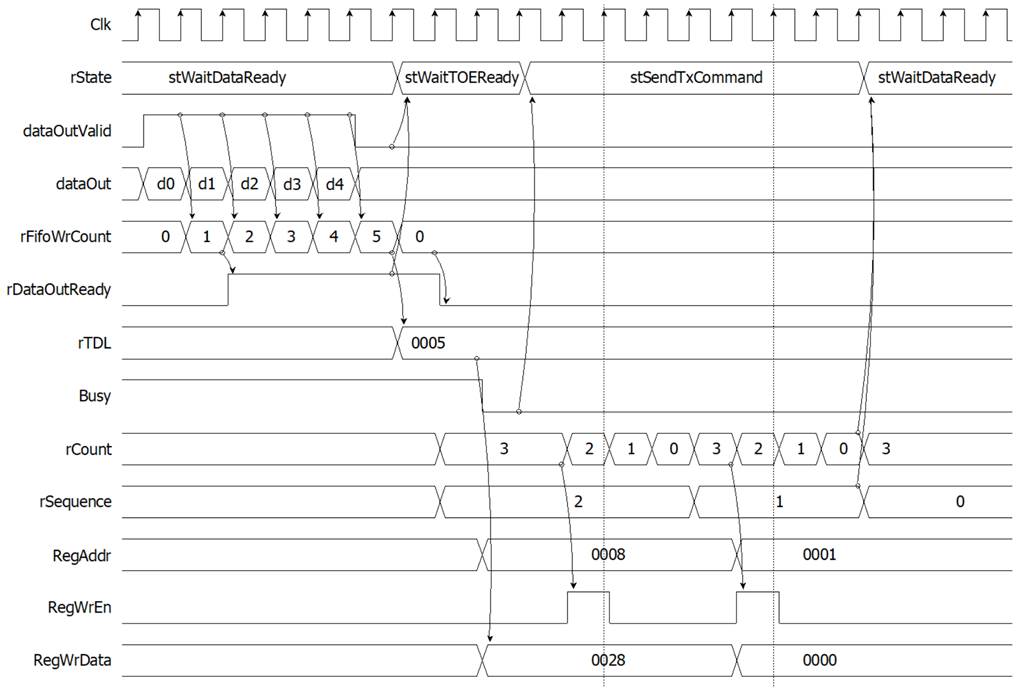

Figure 2‑4 Timing diagram of send 8x64-bit dataOut to TOE10GIP





2.3     Search Replace module

Search Replace module is designed to search 64-bit dataIn in Search Table. When dataIn is matched in Search Table, dataOut is assigned with replace word from Replace Table. But if dataIn is not matched in Search Table (resultData=0), the dataIn is assigned to dataOut instead.



2.3.1   Search Table

Search Table is dual port RAM, 8K address x 9-bit width. This table is assigned to be rule table for tCAMIP.

Port A is reserved for future used.

Port B is connected with tCAMIP as shown in Table 2‑3.

ruleCount(3) is designed to generate 1 clock cycle pulse delay from ruleRdReq signal and is assigned to be ruleRdValid signal. Figure 2‑5 show timing diagram of ruleRdValid generation.



Table 2‑3 Port B signal mapping of search table

Search Table signals

Dir

tCAMIP signals

src_wren_b

<=

'0'

src_data_b

<=

(others => '0')

src_address_b

<=

ruleAddr

q_b

=>

ruleData

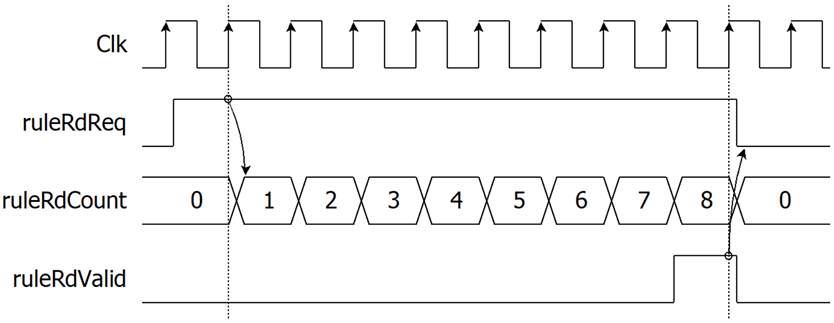

Figure 2‑5 Timing diagram of ruleRdValid generation





Each 8-byte ASCII code of search word is assigned as 8 x 9-bit rule. The “don’t care” byte is assigned as [x], 0x100 value. Table 2‑4 shows sample conversion from search word to rule table. Search Table is initialed values with file “search.coe”.



Table 2‑4 Sample of search word conversion to rule table memory

Rule No.

Search word

Address

A+0

A+1

A+2

A+3

A+4

A+5

A+6

A+7

0001

white

 0000

‘w’, 077

‘h’, 068

‘i’, 069

‘t’, 074

‘e’, 065

‘ ’, 020

[x], 100

[x], 100

0002

White

 0008

057

068

069

074

065

020

100

100

0003

nurse

 0010

06E

075

072

073

065

020

100

100

0004

worse

 0018

077

06F

072

073

065

020

100

100

0005

horse

 0020

068

06F

072

073

065

020

100

100

0006

Horse

 0028

048

06F

072

073

065

020

100

100

0007

Worse

 0030

057

06F

072

073

065

020

100

100

0008

noise

 0038

06E

06F

069

073

065

020

100

100

0009

three

 0040

074

068

072

065

065

020

100

100

000A

city

 0048

063

069

074

079

020

100

100

100

000B

duty

 0050

064

075

074

079

020

100

100

100

000C

City

 0058

043

069

074

079

020

100

100

100

000D

Duty

 0060

044

075

074

079

020

100

100

100

000E

busy

 0068

062

075

073

079

020

100

100

100

000F

easy

 0070

065

061

073

079

020

100

100

100

0010

Busy

 0078

042

075

073

079

020

100

100

100

0011

bury

 0080

062

075

072

079

020

100

100

100























Note: All numbers are hex number.





2.3.2   Initial State Machine

This reference design is provided simple state machine to initialize tCAMIP. Figure 2‑6 show timing diagram of Initial State Machine to generate ruleInit signal and check ruleBusy and ruleStatusCode signals. Operation of initialization is described as below.

·       When RstB is active (‘0’), rState is set to stIdle.

·       When RstB is released (‘1’), rState is changed to stInitStart.

·       At stInitStart, rState is changed to stWaitReady when ruleBusy is active from tCAMIP.

·       At stWaitReady, rState is changed to stInitCompleted when ruleBusy is released to zero and ruleStatusCode is 0001b (initial completed).

o   In case that ruleBusy is released to zero but ruleStatusCode is not 0001b, it means tCAMIP initialization is not success. rState is changed to stIdle for restart initial process again.

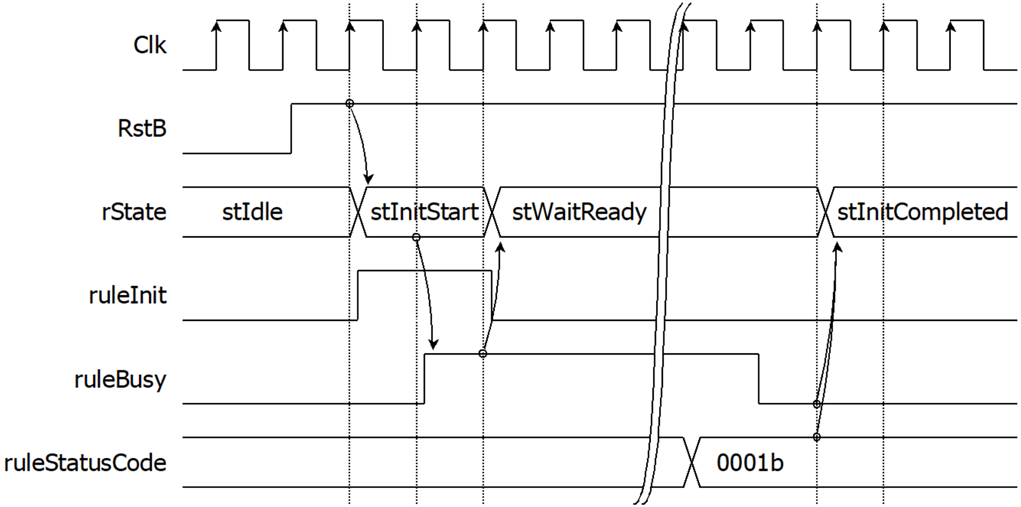

Figure 2‑6 Timing diagram of Initial State Machine





2.3.3   Replace Table

Replace Table is dual port RAM, 1K address x 64-bit width. This table is assigned with replace word. The relation between search word, replace word and memory data is shown as in

Table 2‑6. Replace Table is initialed values with file “replace.coe”

According to resultData from tCAMIP is mapping with Rule No., then address of replace word can be calculated by resultData minus 1 (rep_address_b <= resultData – 1). The detailed of signals assignment is shown as below.

Port A is reserved for user logics.

Port B is connected with signals as shown in Table 2‑5.



Table 2‑5 Port B signal mapping of replace table

Replace Table signals

Dir

tCAMIP signals

rep_wren_b

<=

'0'

rep_data_b

<=

(others => '0')

rep_address_b

<=

resultData - 1

rep_q_b

=>

rep_q_b



Table 2‑6 Sample of search word conversion to rule table memory

Rule No.

Search word

Replace word

Address

Replace word (hex)

0001

white

word001

0000

2031303064726F77

0002

White

word002

0001

2032303064726F77

0003

nurse

word003

0002

2033303064726F77

0004

worse

word004

0003

2034303064726F77

0005

horse

word005

0004

2035303064726F77

0006

Horse

word006

0005

2036303064726F77

0007

Worse

word007

0006

2037303064726F77

0008

noise

word008

0007

2038303064726F77

0009

three

word009

0008

2039303064726F77

000A

city

word010

0009

2030313064726F77

000B

duty

word011

000A

2031313064726F77

000C

City

word012

000B

2032313064726F77

000D

Duty

word013

000C

2033313064726F77

000E

busy

word014

000D

2034313064726F77

000F

easy

word015

000E

2035313064726F77

0010

Busy

word016

000F

2036313064726F77

0011

bury

word017

0010

2037313064726F77













2.3.4   tCAMIP searching process

Figure 2‑7 shows timing diagram of searching data path. The detailed operation of searching process is described as below.

After tCAMIP initialization is completed by initial process on topic 2.3.2, In every clock cycle, dataIn will be searching by tCAMIP and set resultData as matched Rule No. by latency 7 clock cycles.

rep_address_b (resultData – 1) from tCAMIP is used for address of Replace Table, then rep_q_b is out from Replace Table after 2 clock cycles because Replace Table memory is generated with both registers of input address port and output port.

rSearchMatch(0) is set to ‘1’ when resultData from tCAMIP is zero (not match). Then rSearchMatch(1) is one clock cycle delay from rSearchMatch(0).

To control timing of input dataIn and rep_q_b in the same clock cycle, dataIn8 is 9 clock cycles delay from dataIn signals, then dataIn8 and rep_q_b is valid in the same clock cycle.

rLongWord is set to be ‘1’ when previous cycle of dataIn8[63:56] (last byte of word) is 0x20 (space bar character).

Then dataOut is register output multiplexer that is assigned with rep_q_b when rLongWord=’0’ and rSearchMatch(1)=’1’, else is assigned with dataIn8.







Figure 2‑7 Timing diagram of searching data path





3       tCAMIP Search Replace software on Test PC

Main function is separated into 3 parts, 1st is connect/disconnect button with KCU116 board. 2nd is Software Replace button. 3rd is tCAMIP Replace button. The user interface is shown as Figure 3‑1

Software Replace button and tCAMIP Replace button is designed with the same function by search and replace words from input source text to show replace words in output destination text.

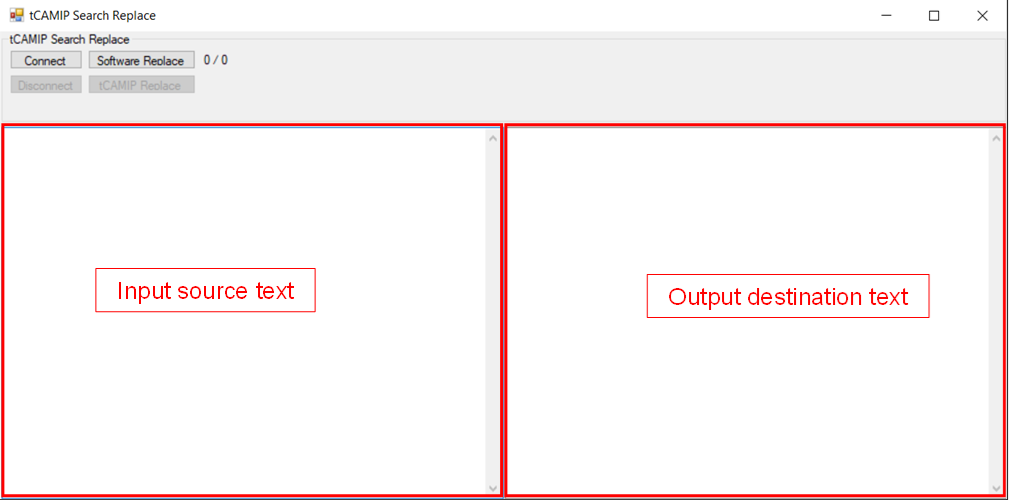

Figure 3‑1 tCAMIP Search Replace software





3.1     Connect/Disconnect button

When user click connect button, software will open connection to KCU116 board at IP=192.168.7.80 port=60000.

In the other hand, disconnect button is used to disconnect from KCU116 board.



3.2     Software Replace button

This button called softSearchReplace function where is designed to search and replace word by “replaceTable” dictionary. The software operation can be explained in 4 parts as below.



3.2.1   Split all text by space

The first step, software will split string from input source text into array of strings by below syntax.



3.2.2   Search Replace Loop

For loop with number of split words, is used to search each word. In case that split word is not found in replaceTable dictionary, split word is concatenated in output array of characters. In another case that split word is found in replaceTable dictionary, replace word is concatenated in output array of characters.instead.



3.2.3   Convert output array of character to output destination textbox string

When loop is finished, output array of character is converted to string type and show into output destination textbox string as below syntax.



3.2.4   Show operation time.

At the end of this function will show popup message for text size and operation time.



3.3     tCAMIP Replace button

This button called tCAMIPSearchReplace function where is designed to search and replace word by using tCAMIP on KCU116 do instead of software. The software operation can be explained in 4 parts as below.



3.3.1   alignEightFromText function

According to TOE10GIP need to data alignment with 64-bit data, this function is designed to add ‘space’ character (ASCII = 0x20) between each word to align with 64-bit data.



Table 3‑1 alignEightFromText function

(int, byte[]) alignEightFromText(string text)

Parameters

string: input source text

Return value

int: size of return buffer

byte[]: return buffer

Description

This function will add ‘space’ character to align each word with 64-bit data.



3.3.2   toeFifoTransfer function

According to tCAMIP will do search replace function in this reference design. So toeFifoTransfer is designed to transmit/receive 64-bit aligned buffer data to/from KCU116 board.



Table 3‑2 toeFifoTransfer function

(int, int, byte[]) toeFifoTransfer(int size, byte[] buffer)

Parameters

int: size of transmit buffer

byte[]: transmit buffer

Return value

int: count of transmit via ethernet

int: count of receive via ethernet

byte[]: receive buffer

Description

This function repeat transmits and receives block of data to KCU116 board. Maximum size of each block is 32K to avoid buffer full at TOE10GIP.



3.3.3   trimBuffer function

According topic 3.3.1, software adds ‘space’ to input source text to align with 64-bit data. So trimBuffer function is designed to remove the additional ‘space’ from receive buffer, then convert from array of byte to be string type.



Table 3‑3 trimBuffer function

string trimBuffer(int size, byte[] buffer)

Parameters

int: size of receive buffer

byte[]: receive buffer

Return value

string: output destination text

Description

This function will replace multiple space with one space.



3.3.4   Show operation time.

At the end of this function will show popup message for text size and operation time.



4       Revision History



Revision

Date

Description

1.00

3-Aug-2021

Initial version release
