Leading Edge Manufacturing & Equipment needs to stay adaptable to evolving standards and emerging technologies for enhanced productivity, zero defects, and reduced manufacturing costs. Design Gateway’s IP core solutions provide vital elements for FPGA-based manufacturing and equipment development, addressing these crucial needs.
Examples of DG’s IP Core Applications
![](https://www.dgway.com/market/wp-content/uploads/2022/07/Banknote-recognition-system.jpg)
Banknote recognition
system
![](https://www.dgway.com/market/wp-content/uploads/2023/10/SATA-IP-1-1024x319.png)
![](https://www.dgway.com/market/wp-content/uploads/2022/07/Industrial-printer.jpg)

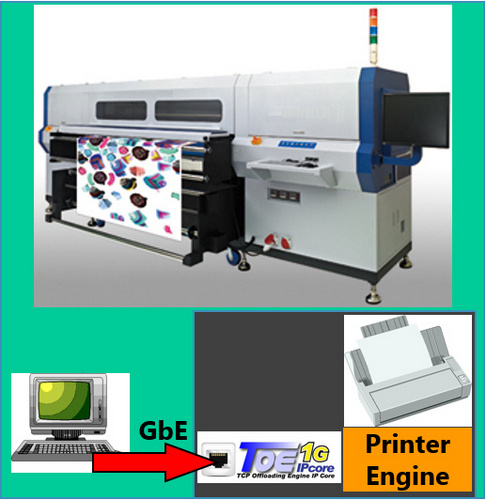

Industrial
Printer
![](https://www.dgway.com/market/wp-content/uploads/2023/10/TOE-xxG-1024x389.png)
![](https://www.dgway.com/market/wp-content/uploads/2022/07/Wireless-communication-system.jpg)
Wireless Communication
system
![](https://www.dgway.com/market/wp-content/uploads/2023/10/UDP-xxG-1024x334.png)
![](https://www.dgway.com/market/wp-content/uploads/2022/07/Automation-Control.jpg)
Low latency
Automation Control
![](https://www.dgway.com/market/wp-content/uploads/2022/07/Low-Latency.png)
Success Stories & Application Example
Key Factors
- Real time sensor data to NVMe SSD
- High data rate UDP tranafer sensor data over 10G network
- High speed & reliable TCP transfer over 10G without CPU & OS
![](https://www.dgway.com/market/wp-content/uploads/2023/12/Manufacturing-Equipment_App_2-1024x1024.png)
![](https://www.dgway.com/market/wp-content/uploads/2023/10/Manufacturing-Equipment_App-1-1024x1024.png)
Key Factors
- Standalone NVMe Host Controller support latest NVMe SSD device technology, PCIe Gen4 and Gen5 speed
- Super low latency TCP/UDP offload engine for Robot Automation Control
- High performance AES encryption to improve Automation Control security
Key Factors
- Automatic retransmit is required for data reliability
- No CPU resource required for TCP control
- Development can be advanced on AC701 with the reference design before the user board is completed
![](https://www.dgway.com/market/wp-content/uploads/2023/10/Manufacturing-Equipment_App-2-1024x1024.png)
