tCAM IP core400 MSPS by constant latency at 7 clock cycles

FeaturesBlock diagramDocument DownloadApplications
tCAM-IP is a high performance, extremely low latency and highly configurable ternary content-addressable memory IP. tCAM-IP can make deterministic search at 400MSPS continuously speed with constant latency at 7 clock cycles. It can achieve matching/filtering performance at 400,000,000 packets per second over 40G/100G Ethernet. It is ideal for variant applications such as network packet filtering/forwarding, intelligent switch/router, deep packet inspection and network security application. We can provide tCAM-IP custom reference design together with TOE-IP, UDP-IP, EMAC-IP based on customer requirements. Contact Us

Features

  • Key width 64/56/48/40/32/24/16 bits
  • Up to 1M rule entries
  • Searching latency is constant at 7 clock cycles
  • Up to 400 MSPS @ 400MHz searching speed, 1,000,000 Search/MHz
  • Easy to customize rule table memory
  • Simple rule table memory setup and user interface signals
  • Free evaluation demo combined with DG TOE1G-IP core is available


tCAM-IP performance demo is available
on Agilex™ 7 I-series

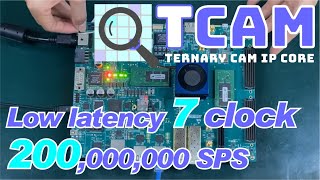

YouTube Video


tCAM-IP introduction

Block Diagram


Example Block Diagram
for Network switching & filtering application

Document & Demo file download

Please receive technical document update from DG News Letter. Subscribe to DG News
Technical document update page
Document name tCAM-IP
Sales Document (Agilex™ 7 I-series) 2023Q3
Presentation Rev1.0AE
Introduction Video

Technical Documents & Free Evaluation files

Document Name Altera (Intel)
Datasheet Rev1.03
Reference Design Document
Demo Instruction Document Arria10 SX | Stratix 10 MX
Free Evaluation Demo file Arria 10 SX | Stratix 10 MX
tCAM-IP performance demo on Arria 10 SX
資料 Arria10 SX, Stratix 10 MX Agilex™ 7 I-series
Reference design by Search Replace function Rev1.02 Rev1.00
Search Replace Demo Instruction Arria10 SX
Stratix 10 MX
Agilex™ 7 I-series
Free Evaluation Demo file Arria 10 SX
Stratix 10 MX
Agilex™ 7 I-series
For more detail, please Contact Us
