raNVMe-IP

raNVMe-IP (Random Access NVMe IP) is the new generation of NVMe-IP series which is intentionally optimized for random access. raNVMe-IP can achieve more than 500K IOPS for random write access on high performance NVMe SSD without CPU intervention. Ideal for the application such as Database Search Application which requires multiple access to NVMe SSD with best performance.

No CPU/DDR required
Standard Type
No PCIe Hard IP required >500K IOPS random write access Multi user simultaneously access Random Access By Multiple Users
NVMe IP NVMeG4 IP raNVMe IP muNVMe IP rmNVMe IP
NVMe-IP core series Selection Guide to choose suitable solution

Features

  • NVMe host controller for access one NVMe SSD without CPU and external memory
  • Support up to 32 Write or Read commands for 4 Kbyte random access
  • High Performance and Compact resource
    • Write=592KIOPs, Read=226KIOPs (measured by KCU105)
    • Resource usage: 716CLB, Memory=34BRAMTile
  • Support single command for Identify, Shutdown, SMART and Flush
  • Operating the same command at a time, not supporting Write and Read command in the same queue
  • Include 128 Kbyte RAM to be data buffer
  • Simple user interface by using data streaming interface
  • Supported NVMe device
    • Base Class Code:01h (mass storage), Sub Class Code:08h (Non-volatile), Programming Interface:02h (NVMHCI)
    • MPSMIN (Memory Page Size Minimum): 0 (4Kbyte)
    • MDTS (Maximum Data Transfer Size): At least 5 (128 Kbyte) or 0 (no limitation)
    • LBA unit: 512 byte
  • User clock frequency must be more than or equal to PCIe clock (250MHz for Gen3)
  • Operating with Integrated Block for PCI Express from AMD by using 4-lane PCIe Gen3 (128-bit bus interface)
  • Reference design with AB18-PCIeX16 / AB17-M2FMC adapter board available on AMD FPGA boards
    Available on Mouser
  • Customized service for following features
    • Support Write and Read command in the same queue
    • Additional NVMe commands
    • RAM size modification, more than 32 commands or more than 4 Kbyte data size
    • RAM type modification, URAM

Block diagram


* Click to show more detail

Document download

Please receive technical document update from DG News Letter. Subscribe to DG News
Technical document update page

Common Documents

Document name Update (Revision)
NVMe-IP core Brochure Rev2.6EX
NVMe-IP核 Rev2.4CX (中文)
raNVMe-IP core Presentation Rev1.0XE
Introduction Video

Technical Documents

Support Devices Versal, Zynq UltraScale+, Virtex UltraScale+, Kintex UltraScale+, Kintex UltraScale
IP core Datasheet Reference Design Document Demo Instruction Document FPGA Board Setup Evaluation demo file
Demo Video
raNVMe-IP
(Gen4)
Rev1.0 Rev1.0 Rev1.0 Rev4.7 VCK190
raNVMe-IP Rev2.0 Rev1.4 Rev1.4 Rev4.7 VCU118
KCU116
KCU105
ZCU106
Data Stream Demo - Rev1.1 Rev1.1 Rev4.7 KCU105
ZCU106
Multiple User Demo - Rev1.0 Rev1.1 Rev4.7 KCU105
ZCU106

Accessories for evaluation

Accessories for evaluation Description
AB18-PCIeX16 PCIe x16 Lanes Crossover adapter board for NVMe-IP evaluation
Download manual

Purchase

About price and licence of this IP core, please contact Design Gateway.

Application example

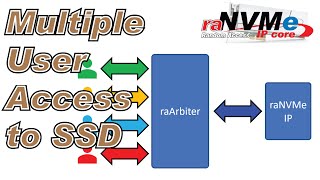

Multiple user (host) sharing single SSD system

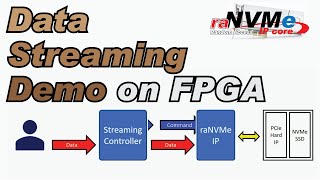

Data Stream Application (Video recording Start-Stop operation)
