muNVMe IPMultiple data stream access to NVMe SSD simultaneously without CPU!

Features┃Block diagram┃Document Download
muNVMe-IP

muNVMe-IP (Multi User NVMe IP) is designed and optimized for multiple data stream access to single NVMe SSD by multiple users simultaneously. muNVMe-IP can achieve close to SSD's maximum possible throughput for both mixed read/write and same direction access. This IP is recommended for the application that requires high performance & multiple data streaming or sequential access over single NVMe SSD by pure hardware logic without CPU/OS. Customization to increase the number of users is possible upon customer's requirements.

No CPU/DDR required
Standard Type		 No PCIe Hard IP required >500K IOPS random write access Multi user simultaneously access Random Access By Multiple Users
NVMe IP NVMeG4 IP raNVMe IP muNVMe IP rmNVMe IP
NVMe-IP core series Selection Guide to choose suitable solution

Features

  • NVMe host controller for access one NVMe SSD without CPU and external memory
  • Support 4 users (Gen4) / 2 users (Gen3) to access one SSD simultaneously
  • Simple user interfaces by dgIF typeS
  • Include 256K bytes or 1M bytes RAMs for per user
  • Command support:
    • User#0 (Main user): Identify, Shutdown, Write, Read, SMART, and Flush
    • User#1-3 (Sub user): Write and Read
  • Supported NVMe device
    • Base Class Code:01h (mass storage), Sub Class Code:08h (Non-volatile), Programming Interface:02h (NVMHCI)
    • MPSMIN: 0 (4KB)
    • MDTS: At least 5 (128 KB) or 0 (no limitation)
    • LBA unit: 512 bytes or 4096 bytes
    • Support multiple queues
  • User clock frequency must be more than or equal to PCIe clock (250MHz for Gen3/Gen4)
  • Operating with Integrated Block for PCI Express from AMD by using 4-lane PCIe Gen3 (128-bit bus interface) or PCIe Gen4 (256-bit bus interface)
  • One muNVMe IP connects to one NVMe SSD directly
  • Available reference design:
    • Four-user demo on VCK190
    • Two-user demo on KCU116 and ZCU106

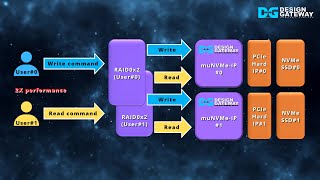

    • 2-ch RAID0 demo on ZCU106
  • Customized service for following features
    • Additional NVMe commands
    • Increase user channel

Block Diagram
* Click to show more detail

Document download

Please receive technical document update from DG News Letter. Subscribe to DG News
Technical document update page
Documents
Introduction Video
Design Gateway's Technology Blog

Technical Documents

Support Devices Versal, Zynq UltraScale+, Kintex UltraScale+
IP core Datasheet Reference Design Document Demo Instruction Document FPGA Board Setup Evaluation demo file
Demo Video
muNVMe-IP Rev1.0
(Gen4)
Rev1.0
(Gen3)		 Rev1.0
(Gen4)
Rev1.0
(Gen3)		 Rev1.0
(Gen4)
Rev1.0
(Gen3)		 Rev4.7 ZCU106
KCU116
2ch RAID0 Rev1.0 Rev1.0 Rev2.2 ZCU106
exFAT2-IP
with 2 Users
for muNVMe-IP		 Rev1.0 Rev1.0 Rev1.0 VCK190
exFAT2-IP
FTP Server Demo
with TOE100G-IP		 Rev1.00 Rev1.00 VCK190

Application Example


muNVMe-IP is suitable data storage solutions for next generation 5G/6G base station or data logger.

Accessories for evaluation

Accessories for evaluation Description
AB18-PCIeX16 PCIe x16 Lanes Crossover adapter board for NVMe-IP evaluation
Download manual
Purchase

About price and licence of this IP core, please contact Design Gateway.
